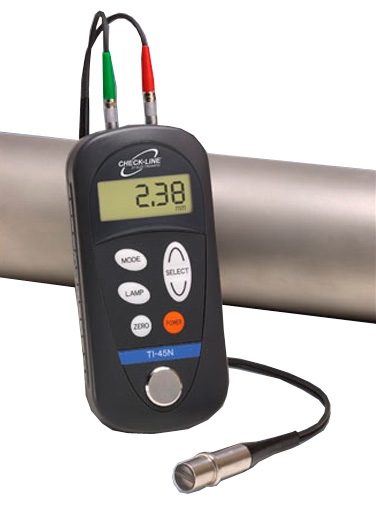

The Checkline TI-45NA Ultrasonic Wall Thickness Gauge kit with 5mhz, 10mm Probe is a precision instrument that accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side! The attractive, ergonomic housing design is extremely compact, lightweight and rugged. The Checkline TI-45N Ultrasonic Thickness Gauge fits comfortably in the palm of your hand and incorporates a back light that illuminates the LCD in poorly lit areas.
5 MHz, .39" (10 mm) diameter without Centering Shell
Cable
39" (1m) 2-wire, long cable with quick-disconnect connectors
Minimum Pipe Size
1" nominal (30mm) steel pipe
Temp. Limits
Ambient 25 to 125° F (-5 to 50° C) Material -15 to 140° F (-10 to 60° C)
Calibration Plate
0.250" (6.35mm) steel plate, built into the front of the housing
Battery Type
Two AA batteries
Battery Life
200 hours
Weight
Gauge 7 ounces (200 g)
Size
5.2" x 2.7" x 1.1" (131 x 68 x 29 mm)
Warranty
Gauge 1 years Probe 90 days
Accessories Included
Fitted, hard-plastic carrying case, probe shell attachment, 2 oz. bottle of coupling fluid, 1 spare battery and operating instruction guide

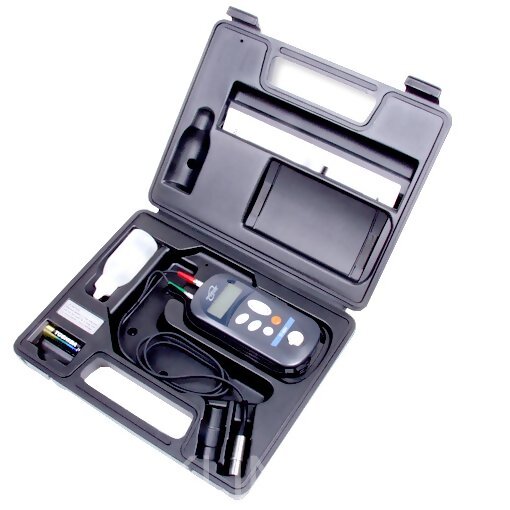

Kit Contents
Complete kit with the gauge and wrist strap, probe and cable assembly, 2 oz. bottle of coupling fluid, batteries and instruction manual -- all supplied in a fitted, hard plastic carrying.
5 MHz, .39" (10 mm) diameter without Centering Shell
Cable
39" (1m) 2-wire, long cable with quick-disconnect connectors
Minimum Pipe Size
1" nominal (30mm) steel pipe
Temp. Limits
Ambient 25 to 125° F (-5 to 50° C) Material -15 to 140° F (-10 to 60° C)
Calibration Plate
0.250" (6.35mm) steel plate, built into the front of the housing
Battery Type
Two AA batteries
Battery Life
200 hours
Weight
Gauge 7 ounces (200 g)
Size
5.2" x 2.7" x 1.1" (131 x 68 x 29 mm)
Warranty
Gauge 1 years Probe 90 days
Accessories Included
Fitted, hard-plastic carrying case, probe shell attachment, 2 oz. bottle of coupling fluid, 1 spare battery and operating instruction guide
Kit Contents
Complete kit with the gauge and wrist strap, probe and cable assembly, 2 oz. bottle of coupling fluid, batteries and instruction manual -- all supplied in a fitted, hard plastic carrying.
Product Features
Resolution of 0.001" (0.01mm)
Extremely compact & lightweight
Switch-selectable units - inches or mm
Built-in calibration test plate
Quick display update with last reading retained on the display
Display symbols alert user to poor coupling and low battery conditions
