The Checkline TI-CMX Ultrasonic Coating and Wall Thickness Gauge is a precision instrument that measures both coating and wall thickness quickly and accurately from only one side. In addition, when switched to Pulse-Echo mode, the Checkline TI-CMX Ultrasonic Coating & Wall Thickness Gauge automatically measures and eliminates the coating from the wall thickness measurement, enabling the user to locate the finest corrosion and pitting without removing the coating. Oversize graphic LCD is backlit and features easy to read fonts, graphics and display codes showing all critical settings including Velocity, Operating Mode, Alarms, Scan Mode and more. The backlight can be set to ON (always-on), OFF (always-off) or AUTO (automatically-on when measuring).
Auto probe recognition with Auto Zero or Manual Zero.
Wide variety of dual-element probes can be used for nearly any application.
Bar graph with user-set start end values providing highest resolution around the target thickness value.
Differential Mode allows user to set a "target thickness value" and display will show the DIFFERENCE between actual and target thickness as a plus or minus value.
Includes NIST-Traceable Calibration.
CE Certified.
Adjustable Gain in 5 steps (VLow, Low, Med, Hi & VHi) in 2db increments providing a 8 db gain adjust range (4250 db).
64 custom setups can be stored and retrieved for convenient use and labeled for easy identification
Display Hi/Lo Alarm Limits with audible and visual indicators.
2 Year Warranty
Metal housing provides strong protection against harsh environments.
Pulse-Echo Mode Pit and Flaw detection measures from 0.025 - 9.999inches (0.63 to 254 millimeters) / Echo-Echo Mode Thru Paint & coatings measures from 0.100 - 4.000 inches (2.54 to 102 mm). Range will vary depending on the thickness of the coating.
Max Coating
0.100"
Resolution
.001 inches (0.01mm)
Velocity Range
.0492 to .3936 in./ms 1250 to 9999 meters/sec
Units
Inch or mm
Measurement Modes
- Pulse-Echo (corrosion mode) - Pulse-Echo Coating (Corrosion w/o coating) - Echo-Echo (thru-paint) - Temp Comp (auto adjust for material temp) - Coating Only (Ultrasonic Coating Gauge)
Transducer Types
Dual Element (1 to 10 MHz).
Output
RS-232 for upload/download of setups
Memory capacity
TI-CMX None / TI-CMXDL over 200,000 measurements
Power Source
Three 1.5V alkaline or 1.2V NiCad AA cells
Battery Life
Typically operates for 150 hours on alkaline and 100 hours on NiCad
Typically operates for 150 hours on alkaline and 100 hours on NiCad
After 5 minutes of non-use
Display
1/8 in. VGA grayscale display 62 x 45.7mm
Keyboard
Membrane switch with twelve tactile keys
Case
Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed).
Operating Temperature
-14° to 140°F (-10° to 60°C)
Weight, net
383 grams
Dimensions
63.5 W x 165 H x 31.5 D mm
Warranty
2 year limited
Certification
CE Approved, Factory calibration traceable to national standards
Kit Contents

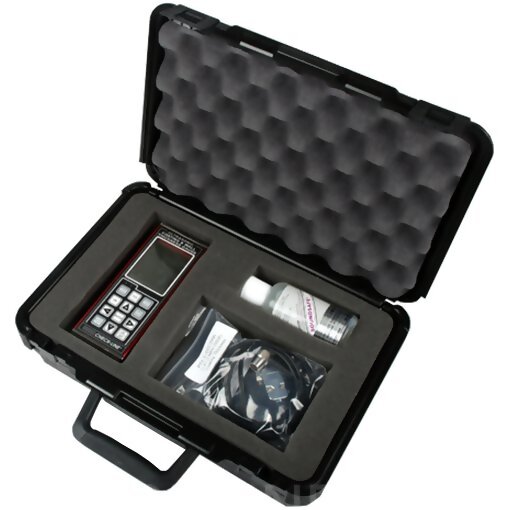

Supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST Calibration Certificate, operating manual, RS-232 cable and software —all in a foam-fitted carrying case.
Pulse-Echo Mode Pit and Flaw detection measures from 0.025 - 9.999inches (0.63 to 254 millimeters) / Echo-Echo Mode Thru Paint & coatings measures from 0.100 - 4.000 inches (2.54 to 102 mm). Range will vary depending on the thickness of the coating.
Max Coating
0.100"
Resolution
.001 inches (0.01mm)
Velocity Range
.0492 to .3936 in./ms 1250 to 9999 meters/sec
Units
Inch or mm
Measurement Modes
- Pulse-Echo (corrosion mode) - Pulse-Echo Coating (Corrosion w/o coating) - Echo-Echo (thru-paint) - Temp Comp (auto adjust for material temp) - Coating Only (Ultrasonic Coating Gauge)
Transducer Types
Dual Element (1 to 10 MHz).
Output
RS-232 for upload/download of setups
Memory capacity
TI-CMX None / TI-CMXDL over 200,000 measurements
Power Source
Three 1.5V alkaline or 1.2V NiCad AA cells
Battery Life
Typically operates for 150 hours on alkaline and 100 hours on NiCad
Typically operates for 150 hours on alkaline and 100 hours on NiCad
After 5 minutes of non-use
Display
1/8 in. VGA grayscale display 62 x 45.7mm
Keyboard
Membrane switch with twelve tactile keys
Case
Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed).
Operating Temperature
-14° to 140°F (-10° to 60°C)
Weight, net
383 grams
Dimensions
63.5 W x 165 H x 31.5 D mm
Warranty
2 year limited
Certification
CE Approved, Factory calibration traceable to national standards
Kit Contents
Supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST Calibration Certificate, operating manual, RS-232 cable and software —all in a foam-fitted carrying case.
Product Features
Auto probe recognition with Auto Zero or Manual Zero.
Wide variety of dual-element probes can be used for nearly any application.
Bar graph with user-set start end values providing highest resolution around the target thickness value.
Differential Mode allows user to set a "target thickness value" and display will show the DIFFERENCE between actual and target thickness as a plus or minus value.
Includes NIST-Traceable Calibration.
CE Certified.
Adjustable Gain in 5 steps (VLow, Low, Med, Hi & VHi) in 2db increments providing a 8 db gain adjust range (4250 db).
64 custom setups can be stored and retrieved for convenient use and labeled for easy identification
Display Hi/Lo Alarm Limits with audible and visual indicators.
2 Year Warranty
Metal housing provides strong protection against harsh environments.
