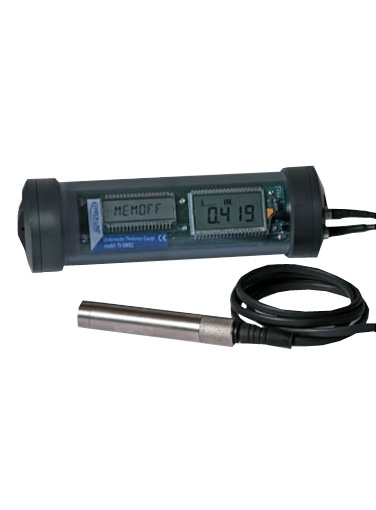

The Checkline TI-UMX2 Underwater Ultrasonic Thickness Gauge with T-074-2906 Probe, Z-185-0001 is a precision instrument that accurately measures wall thickness and the extent of corrosion of all metals at depths of up to 1000 feet (300 Meters). A back-lit LCD display and illuminated housing allow divers to easily read measurements in dark water.
4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 50 ft. (15 m).
Temp. Limits
Ambient -20 to 120° F (-30 to 50° C) / Material -0 to 200° F (-20 to 100° C Special high temperature probes are optionally available.
Battery Type
Two AA batteries
Battery Life
200 hours
Weight
2.8 pounds
Size
3.5 x 7.5 x 2.75" (63.5 W x 190.5 H x 69.85 D mm)
Accessories Included
Probe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case.
Warranty
Gauge 3 Years Probe 90 Days
Operating Modes
PE - Pulse-Echo / PECT - Pulse-Echo Coating / EE - Echo-Echo / EEE - Triple Echo TCG
Kit Contents
Supplied as a complete kit with the gauge, 4 oz. bottle of coupling fluid, AA batteries, NIST-Traceable Calibration Certificate, data transfer software, serial output cable with USB converter and spare gasket & lube kit including Operating Instruction Manual - all in a foam-fitted carrying case.
4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 50 ft. (15 m).
Temp. Limits
Ambient -20 to 120° F (-30 to 50° C) / Material -0 to 200° F (-20 to 100° C Special high temperature probes are optionally available.
Battery Type
Two AA batteries
Battery Life
200 hours
Weight
2.8 pounds
Size
3.5 x 7.5 x 2.75" (63.5 W x 190.5 H x 69.85 D mm)
Accessories Included
Probe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case.
Warranty
Gauge 3 Years Probe 90 Days
Operating Modes
PE - Pulse-Echo / PECT - Pulse-Echo Coating / EE - Echo-Echo / EEE - Triple Echo TCG
Kit Contents
Supplied as a complete kit with the gauge, 4 oz. bottle of coupling fluid, AA batteries, NIST-Traceable Calibration Certificate, data transfer software, serial output cable with USB converter and spare gasket & lube kit including Operating Instruction Manual - all in a foam-fitted carrying case.
Product Features
includes T-074-2906 Dual element probe
Housing is rated for dive depths up to 1000 ft (300 meters) with backlit display
Resolution of 0.001" (0.01 mm) user-selected units of inch or mm
Includes built-in datalogger for 5000 readings, settings and waveforms in sequential or "grid" (row/column) format
Automatic probe recognition and auto zero
Supplied with FREE NIST-Traceable Calibration Certificate
Supplied with data transfer cable and FREE data analysis software
