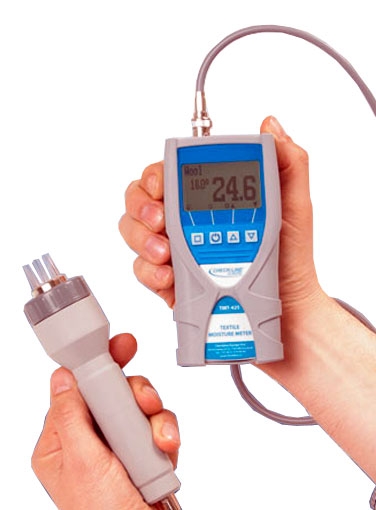

Checkline TMT-425-USB-WOE Digital Textile Moisture Meter with USB Output without Electrodes, 0.3% to 26.0% Moisture Content
The Checkline TMT-425-USB-WOE Digital Textile Moisture Meter with USB Output without Electrodes, 0.3% to 26.0% Moisture Content is the next generation of textile moisture meters. It determines the moisture content of textiles, natural materials, synthetics and yarn during the production process within seconds. The water content of textiles and yarns influences the elasticity and tensile strength directly. This textile moisture tester has all textile curves stored inside and does not require any look up tables. Just select the appropriate moisture curve and start measuring. By this, maximum accuracy is guaranteed.
Wide measuring range of 0.3% to 26% moisture content Memory Enables quality control and documentation on location Many stored curves for determining humidity in textile, natural and synthetic fabrics and yarns Menu languages: German, English, French, Italian, Spanish and Russian Automatically calculates average measurement values No conversion tables needed! Automatic temperature compensation
Measuring Range
0.3% to 26% moisture content
Resolution
0.1%
Measuring Technique
Electrical Resistance
Menu Languages
English, German, French, Italian, Spanish and Russian
Housing
Meter; Plastic with IP40 classification
Data Recording
10,000 measurements with date, batch and temperature
Display
Grafic LCD display with backlight (128 x 64 pixels)
Temperature
Automatically in °C or °F using a built-in temperature probe
Operating Temperature
0 °C to 40 °C
Storage Temperature
-20 °C to 60 °C
Power Supply
4 x 1.5 Volt AA Alkaline Batteries
Data transfer (only for TMT-425-USB)
Via USB-port (supplied with USB cable and software)
Dimensions
740 x 65 x 40 mm
Weight
450 gr. including batteries
Warranty
2 years
TMT-425 Textile Moisture Meter Connecting Cable TMT-425-CABLE Electrode Holder 204 Electrode 205 Electrode 207 Batteries Carrying Case
More Information
Product Specifications
Measuring Range
0.3% to 26% moisture content
Resolution
0.1%
Measuring Technique
Electrical Resistance
Menu Languages
English, German, French, Italian, Spanish and Russian
Housing
Meter; Plastic with IP40 classification
Data Recording
10,000 measurements with date, batch and temperature
Display
Grafic LCD display with backlight (128 x 64 pixels)
Temperature
Automatically in °C or °F using a built-in temperature probe
Operating Temperature
0 °C to 40 °C
Storage Temperature
-20 °C to 60 °C
Power Supply
4 x 1.5 Volt AA Alkaline Batteries
Data transfer (only for TMT-425-USB)
Via USB-port (supplied with USB cable and software)
Dimensions
740 x 65 x 40 mm
Weight
450 gr. including batteries
Warranty
2 years
Product Features
Wide measuring range of 0.3% to 26% moisture content Memory Enables quality control and documentation on location Many stored curves for determining humidity in textile, natural and synthetic fabrics and yarns Menu languages: German, English, French, Italian, Spanish and Russian Automatically calculates average measurement values No conversion tables needed! Automatic temperature compensation
