Checkline WTT-100 Manual Wire Terminal Pull Tester, 110 lb / 50 Kg / 500 N Capacity

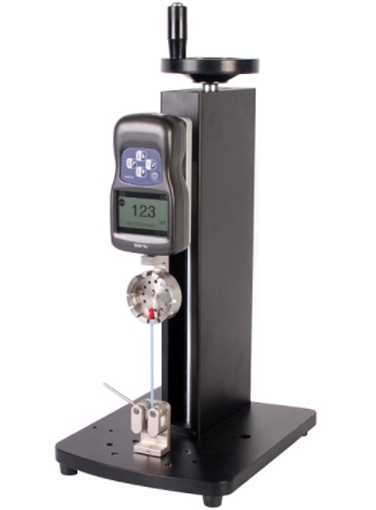

The Checkline WTT-100 Manual Wire Terminal Pull Tester, 110 lb / 50 Kg / 500 N Capacity is used to precisely measures the pull off force of crimped on wire terminals up to 220 lbs / 100 kg. The system consists of a manual hand-wheel test stand, digital force gauge and wire gripping fixtures for wire diameters up to 0.24 inches / 6mm.
Vertical or Horizontal operation Programmable High & Low Limits allow for instant visual and audible indication of pass or fail testing in Preset mode 500 reading memory Supplied with Factory Calibration Certificate, NIST Traceable Cert is Optional Includes Data Logging Software USB and RS232 Output User selectable measuring units (lbs / Kg / N)
Capacity
WTT-100
Resolution
WTT-100
Accuracy
± 0.3% F.S.
Stroke
9" (230 mm) without attachments installed
Overload Capacity
150% of F.S. (LCD flashes beyond 110% of F.S.)
Display Update Rate
10 times/second
Memory
500 readings
Power
Internal Ni-MH rechargeable batterie, Universal Power adapter included
Battery Life
Approximately 16 hours continuous use per full charge
Outputs
USB, RS-232; High & Low Limit NPN’s
Operating Temperature
14 to 104°F (-10 to 40°C)
Dimensions
9.8 x 7.7 x 17.5" (250 x 196 x 445 mm)
Weight
19 lbs / 8.6 Kg
Warranty
1 Year
More Information
Product Specifications
Capacity
WTT-100
Resolution
WTT-100
Accuracy
± 0.3% F.S.
Stroke
9" (230 mm) without attachments installed
Overload Capacity
150% of F.S. (LCD flashes beyond 110% of F.S.)
Display Update Rate
10 times/second
Memory
500 readings
Power
Internal Ni-MH rechargeable batterie, Universal Power adapter included
Battery Life
Approximately 16 hours continuous use per full charge
Outputs
USB, RS-232; High & Low Limit NPN’s
Operating Temperature
14 to 104°F (-10 to 40°C)
Dimensions
9.8 x 7.7 x 17.5" (250 x 196 x 445 mm)
Weight
19 lbs / 8.6 Kg
Warranty
1 Year
Product Features
Vertical or Horizontal operation Programmable High & Low Limits allow for instant visual and audible indication of pass or fail testing in Preset mode 500 reading memory Supplied with Factory Calibration Certificate, NIST Traceable Cert is Optional Includes Data Logging Software USB and RS232 Output User selectable measuring units (lbs / Kg / N)
