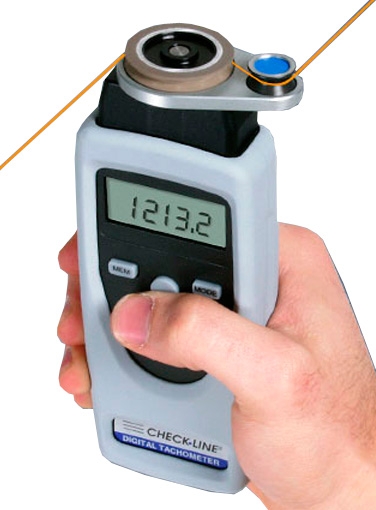

The Checkline YSL-2000HD Yarn Meter Tachometer, Range Non-Contact 1.00 - 99,999 rpm / Contact 1.00 - 19,999 rpm is a precision instrument that combines the functions of three separate instruments in one, easy-to-use device. It accurately measures the speed and length of yarns, wires and other filaments using a unique "wrapper" roller. This precision roller directs the filament onto the low-inertia, U-grooved measuring wheel to maximize contact and eliminate filament slip and breakage. The YSL-2000HD Yarn Meter can also be used as either a contact or non-contact tachometer to measure rotational speeds of shafts, motors, pulleys, etc. or linear speeds of moving surfaces such as conveyor belts, webs of paper or fabric, etc.
.01 from 0 - 100 .1 from 100 - 1,000 1 from 1000 - 99,999
Yarn/Wire Diameter (max.)
Yarn; 1mm Wire; 0.3mm
Accuracy
± 0.02% of reading or 1 digit
Display
5 - Digit LCD, 10mm high
Decimal Point
Automatic
Memory System
Maximum, minimum, and last reading (retained in memory for the life of the batteries)
Measurement System
Non-Contact; Visible LED light beam Contact; Contact adapter
Sensing Distance
Up to 14 inches (350mm)
Display Update Time
0.5 seconds or one measuring
Auto Power Off
After 30 seconds of non-use (minimum, maximum and last reading retained in memory)
Battery Life
20 hours continuous use
Weight
6 ounces (170 grams)
Housing Material
ABS Plastic
Operating Temp
32 to 122° F (0 to 50° C)
Storage Temp
-4 to 150° F (-20 to 70° C)
Accessories
Shaft extension, 3.15 inches (80 mm)
Warranty
5 years
Kit Contents

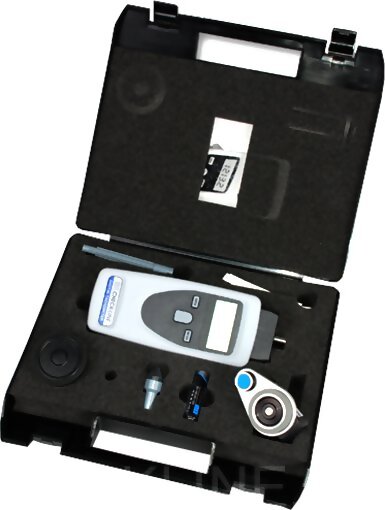

The YSL unit, two slide-on measuring heads (tachometer and yarn speed), cone tip, universal surface speed wheel with integrated funnel tip adapter, reflective tape, two AA batteries and operating instructions, all supplied in a foam-fitted, hard-plastic carrying case.
.01 from 0 - 100 .1 from 100 - 1,000 1 from 1000 - 99,999
Yarn/Wire Diameter (max.)
Yarn; 1mm Wire; 0.3mm
Accuracy
± 0.02% of reading or 1 digit
Display
5 - Digit LCD, 10mm high
Decimal Point
Automatic
Memory System
Maximum, minimum, and last reading (retained in memory for the life of the batteries)
Measurement System
Non-Contact; Visible LED light beam Contact; Contact adapter
Sensing Distance
Up to 14 inches (350mm)
Display Update Time
0.5 seconds or one measuring
Auto Power Off
After 30 seconds of non-use (minimum, maximum and last reading retained in memory)
Battery Life
20 hours continuous use
Weight
6 ounces (170 grams)
Housing Material
ABS Plastic
Operating Temp
32 to 122° F (0 to 50° C)
Storage Temp
-4 to 150° F (-20 to 70° C)
Accessories
Shaft extension, 3.15 inches (80 mm)
Warranty
5 years
Kit Contents
The YSL unit, two slide-on measuring heads (tachometer and yarn speed), cone tip, universal surface speed wheel with integrated funnel tip adapter, reflective tape, two AA batteries and operating instructions, all supplied in a foam-fitted, hard-plastic carrying case.
Product Features
Combination Contact & Non-Contact Tachometer
Slide-on measuring heads make it simple to rapidly convert from one function to another
