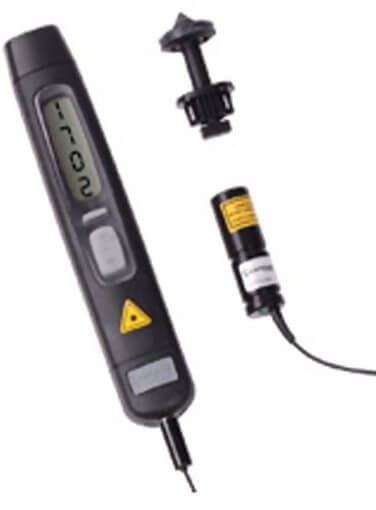

The Compact A2103-LSR-K Advent Professional Optical / Contact Handheld Tachometer, Optical Range 50 - 2000mm is a very versatile multipurpose Tachometer/Counter, with both Optical or Contact rpm, linear rate/distance range.
Measurement units - Revs - Metres - Feet - Yards per min and per second or length in 0/1 metres units Time interval or reciprocal speed- for very slow rates in seconds/rev Count mode - counts distance or revs
Signal output features
5v Pulse Signal is via the 3,5mm stereo Jack socket on the rear of housing, provided for MiniLaser Remote Sensor input. This can be used to measure any pulse rate signal up to 5v p-p.
Measurement units - Revs - Metres - Feet - Yards per min and per second or length in 0/1 metres units Time interval or reciprocal speed- for very slow rates in seconds/rev Count mode - counts distance or revs
Signal output features
5v Pulse Signal is via the 3,5mm stereo Jack socket on the rear of housing, provided for MiniLaser Remote Sensor input. This can be used to measure any pulse rate signal up to 5v p-p.
Product Features
Advent professional Optical/Contact Tachometers
A very versatile multipurpose Tachometer/Counter, with both Optical or Contact rpm, linear rate/distance ranges
Additional remote Laser Optical Sensor for rpm monitoring in difficult access applications
Unique inverting display, allows easy reading when in limited access situations
Optical range of up to 2 metres - the optical performance is second to none
Time & Count modes
Data capture and very fast response modes - 0.1 seconds update time
