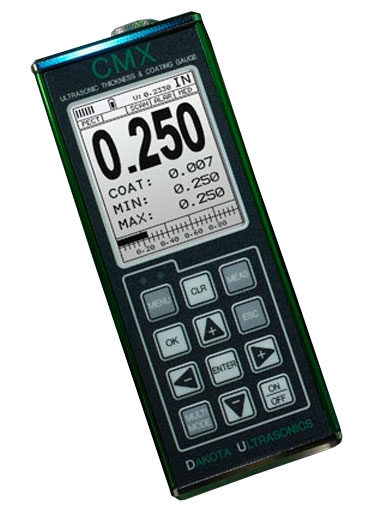

The Dakota Ultrasonics CMX Ultrasonic Coating and Wall Thickness Gauge Z-170-0003 is a precision instrument that measures both coating and wall thickness quickly and accurately—from only one side. In addition, when switched to Pulse-Echo mode, the CMX automatically measures and eliminates the coating from the wall thickness measurement, enabling the user to locate the finest corrosion and pitting—without removing the coating. Oversized graphic LCD is backlit and features easy to read fonts, graphics and display codes showing all critical settings including Velocity, Operating Mode, Alarms, Scan Mode and more. The backlight can be set to ON (always-on), OFF (always-off) or AUTO (automatically-on when measuring).
Multiple calibration options: One Point, Two Point, or selection from a Material List
PVX comes complete with our Windows PC software for transferring data to and from a PC
16 factory setups and 48 user-defined setups. User defined setups can be edited for custom applications.
User-selected resolution of 0.001" or 0.0001" inch units and 0.01 or 0.001 in mm units
PVX is equipped with an alpha-numeric data logger to provide increased versatility for those custom reporting needs
Visual and audible alarm with hi and lo limit settings for specific application tolerances
The high speed scan feature
1/4" 15MHz Delay Line Probe p/n T-481-5507 also available when pencil probe is not needed. Specify TI-PVX-5507 to order as complete kit with this probe
Auto find features locates the detection point(s) and adjusts the display settings to bring the waveform into view
- Pulse-Echo (corrosion mode) - Pulse-Echo Coating (Corrosion w/o coating) - Echo-Echo (thru-paint) - Temp Comp (auto adjust for material temp) - Coating Only (Ultrasonic Coating Gauge)
Transducer Types
Dual Element (1 to 10 MHz).
Output
RS-232 for upload/download of setups
Memory capacity
TI-CMX
Power Source
Three 1.5V alkaline or 1.2V NiCad AA cells
Battery Life
Typically operates for 150 hours on alkaline and 100 hours on NiCad
Auto Power off
After 5 minutes of non-use
Display
1/8 in. VGA grayscale display 62 x 45.7mm
Keyboard
Membrane switch with twelve tactile keys
Case
Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed).
Temp. Limits
Ambient
Weight, net
383 grams
Dimensions
63.5 W x 165 H x 31.5 D mm
Warranty
2 year limited
Certification
CE Approved, Factory calibration traceable to national standards
Product Features
CMX Ultrasonic Coating & Wall Thickness Gauge
2 year limited warranty
Multiple calibration options: One Point, Two Point, or selection from a Material List
PVX comes complete with our Windows PC software for transferring data to and from a PC
16 factory setups and 48 user-defined setups. User defined setups can be edited for custom applications.
User-selected resolution of 0.001" or 0.0001" inch units and 0.01 or 0.001 in mm units
PVX is equipped with an alpha-numeric data logger to provide increased versatility for those custom reporting needs
Visual and audible alarm with hi and lo limit settings for specific application tolerances
The high speed scan feature
1/4" 15MHz Delay Line Probe p/n T-481-5507 also available when pencil probe is not needed. Specify TI-PVX-5507 to order as complete kit with this probe
Auto find features locates the detection point(s) and adjusts the display settings to bring the waveform into view
