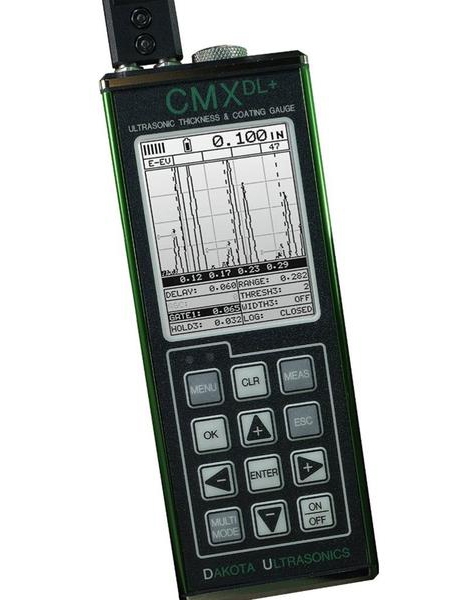

The Dakota Ultrasonics CMXDLP-C Color Data-Logging Combination Coating and Wall Thickness Gauge is the top-of-the-line model in the CMX Series of Gauges that measures both coating and wall thickness quickly and accurately - from only one side. In addition, when switched to Pulse-Echo mode, the CMXDL automatically measures and eliminates the coating from the wall thickness measurement, enabling the user to locate the finest corrosion and pitting—without removing the coating. It features an A-Scan Display Mode allowing the user to see the actual wave form echoes, graphically, providing the insight necessary to tune the settings on the gauge for optimal performance. This is especially important on challenging measurement tasks. The CMXDL+ also features a new E-EV Operating Mode ("Echo-Echo-Verify"), also known as Triple-Echo Mode, which provides addition assurance that the displayed measurement is accurate and fully verified by subsequent echoes. Oversized graphic LCD is backlit and features easy to read fonts, graphics and display codes showing all critical settings including Velocity, Operating Mode, Alarms, Scan Mode and more. The backlight can be set to ON (always-on), OFF (always-off) or AUTO (automatically-on when measuring).
Auto probe recognition with Auto Zero or Manual Zero
Adjustable Gain in 5 steps (VLow, Low, Med, Hi & VHi) in 2db increments providing a 8 db gain adjust range (4250 db).
Wide variety of dual-element probes can be used for nearly any application
64 custom setups can be stored and retrieved for convenient use and labeled for easy identification
Bar graph with user-set start end values providing highest resolution around the target thickness value
Display Hi/Lo Alarm Limits with audible and visual indicators
Differential Mode allows user to set a "target thickness value" and display will show the DIFFERENCE between actual and target thickness as a plus or minus value
2 Year Warranty and CE-Certified
Includes NIST-Traceable Calibration
Metal housing provides strong protection against harsh environments
T-8071-0868 Probe to 1"-1MHz Single-Element Membrane Probe to measure Blow Holes in Thick PE Pipes and Fittings
Pulse-Echo Mode; Pit and Flaw detection measures from 0.025 - 9.999inches (0.63 to 254 millimeters) Echo-Echo Mode; Thru Paint & coatings measures from 0.100 - 4.000 inches (2.54 to 102 mm). Range will vary depending on the thick
Pulse-Echo Mode; Pit and Flaw detection measures from 0.025 - 9.999inches (0.63 to 254 millimeters) Echo-Echo Mode; Thru Paint & coatings measures from 0.100 - 4.000 inches (2.54 to 102 mm). Range will vary depending on the thick
- Pulse-Echo (corrosion mode) - Pulse-Echo Coating (Corrosion w/o coating) - Echo-Echo (thru-paint) - Temp Comp (auto adjust for material temp) - Coating Only (Ultrasonic Coating Gauge)
Transducer Types
Dual Element (1 to 10 MHz).
Output
RS-232 for upload/download of setups
Memory capacity
TI-CMXDLP; over 200,000 measurements
Power Source
Three 1.5V alkaline or 1.2V NiCad AA cells
Battery Life
pically operates for 150 hours on alkaline and 100 hours on NiCad
Auto Power off
After 5 minutes of non-use
Display
1/8 in. VGA grayscale display 62 x 45.7mm
Keyboard
Membrane switch with twelve tactile keys
Case
Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed).
Temp. Limits
Ambient; -20 to 120° F (-30 to 50° C) Material; -0 to 200° F (-20 to 100° C Special high temperature probes are optionally available.
Weight, net
383 grams
Dimensions
63.5 W x 165 H x 31.5 D mm
Warranty
2 year limited
Certification
CE Approved, Factory calibration traceable to national standards
Product Features
Auto probe recognition with Auto Zero or Manual Zero
Adjustable Gain in 5 steps (VLow, Low, Med, Hi & VHi) in 2db increments providing a 8 db gain adjust range (4250 db).
Wide variety of dual-element probes can be used for nearly any application
64 custom setups can be stored and retrieved for convenient use and labeled for easy identification
Bar graph with user-set start end values providing highest resolution around the target thickness value
Display Hi/Lo Alarm Limits with audible and visual indicators
Differential Mode allows user to set a "target thickness value" and display will show the DIFFERENCE between actual and target thickness as a plus or minus value
2 Year Warranty and CE-Certified
Includes NIST-Traceable Calibration
Metal housing provides strong protection against harsh environments
T-8071-0868 Probe to 1"-1MHz Single-Element Membrane Probe to measure Blow Holes in Thick PE Pipes and Fittings
