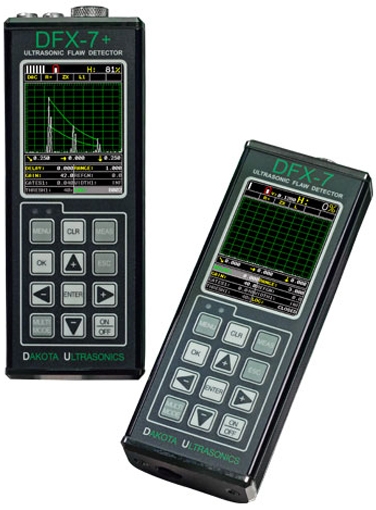

The Dakota Ultrasonics DFX-7 Ultrasonic Flaw Detector Z-220-0003 - Thickness Gauge is both, an ultrasonic flaw detector, as well as an ultrasonic A/B Scan thickness scope, in a single unit. Thickness gauge are specifically setup to very accurately measure thickness, locate pits, flaws and blind surface corrosion. All the linearity tables, correction curves for various types of longitudinal transducers and features are built with dimensional thickness as its primary focus. Flaw detectors are designed to detect, size, position, and differentiate between flaw types in various materials and welded joints. A flaw detector must be fast, in terms of its sample and screen refresh rate, as inspectors are generally scanning the surface of a part or test specimen at a relatively high speed, rather than looking for the thickness at a specific point or location. While flaw detectors can also measure material thickness with reasonable accuracy, they are not designed with precision thickness as their primary focus. The Dakota Ultrasonics DFX-7 combines the two types of gauges into one powerful and full featured instrument, that’s equipped with a number of comprehensive toolkits to provide the user the arsenal necessary to address a number of common field applications.
New landscape A-Scan view (right & left hand) 2.7" waveform view.
Skip Bar feature for easy reference (TRIG leg bar).
Screen Capture to .tif file for quick documentation/reference.
Time dependent Gain (TDG) with adjustable slope Date & time stamp
Date & time stamp
5v external power via USB-C to PC or USB cell phone power adapter.
TRIG:Trigonometric display of beam path, depth, surface distance, and curved surface correction. Used with angle beam transducers.
DAC:Up to 8 points may be entered and used to digitally draw a DAC curve. Reference -2, -6, -10, (-6/-12), (-6/-14), (-2/-6/-10) dB. Amplitude displayed in %DAC, dB, or %FSH.
AWS:Automatic defect sizing in accordance with AWS D1.1 structural welding code.
AVG/DGS:Automatic defect sizing using probe data. Stores up to 64 custom setups.
TCG:Time corrected gain. 50 dB dynamic range, 20 dB per microsecond, up to 8 points for curve definition
Measurement Mode:Pulse-Echo (P-E) range 0.025 in to 100 ft. (0.63mm to 3048 cm).
Auto-Cal:Provides automatic calibration with two reference points
Extruded aluminum body with nickel plated aluminum end caps (gasket sealed)
Display
1/4 VGA AMOLED color display (320 x 240 pixels). Viewable area 1.7 x 2.27 in (43.2 x 57.6 mm). 16 color pallete, multiple color options, and variable brightness
Screen Refresh Rate
60Hz
Display Views
Flaw Detector
Resolution (selectable)
± 0.001 in (0.01 mm) or ± 0.0001 in (0.001mm)
Timing
Precision 25MHz TCXO with single shot 100 MHz 8 bit ultra low power digitizer
Measurement Gates
Two independent gates (Flaw), and three gates (thickness). Start & width adjustable over full range. Amplitude 5-95%, 1% steps. Positive or negative triggering for each gate with audible and visual alarms
Extruded aluminum body with nickel plated aluminum end caps (gasket sealed)
Display
1/4 VGA AMOLED color display (320 x 240 pixels). Viewable area 1.7 x 2.27 in (43.2 x 57.6 mm). 16 color pallete, multiple color options, and variable brightness
Screen Refresh Rate
60Hz
Display Views
Flaw Detector
Resolution (selectable)
± 0.001 in (0.01 mm) or ± 0.0001 in (0.001mm)
Timing
Precision 25MHz TCXO with single shot 100 MHz 8 bit ultra low power digitizer
Measurement Gates
Two independent gates (Flaw), and three gates (thickness). Start & width adjustable over full range. Amplitude 5-95%, 1% steps. Positive or negative triggering for each gate with audible and visual alarms
Operating Temperature
14 to 140F (-10C to 60C)
Environmental
Meets IP65 requirements
Warranty
2 years
Automatic Calibration
Longitudinal (straight), or Shear (angle)
Probe Types
Single Contact, Dual, Delay, and Angle
Product Features
USB-C connectivity
4 GB internal SD memory card.
PRF adjustable up to 2000Hz.
New landscape A-Scan view (right & left hand) 2.7" waveform view.
Skip Bar feature for easy reference (TRIG leg bar).
Screen Capture to .tif file for quick documentation/reference.
Time dependent Gain (TDG) with adjustable slope Date & time stamp
Date & time stamp
5v external power via USB-C to PC or USB cell phone power adapter.
TRIG:Trigonometric display of beam path, depth, surface distance, and curved surface correction. Used with angle beam transducers.
DAC:Up to 8 points may be entered and used to digitally draw a DAC curve. Reference -2, -6, -10, (-6/-12), (-6/-14), (-2/-6/-10) dB. Amplitude displayed in %DAC, dB, or %FSH.
AWS:Automatic defect sizing in accordance with AWS D1.1 structural welding code.
AVG/DGS:Automatic defect sizing using probe data. Stores up to 64 custom setups.
TCG:Time corrected gain. 50 dB dynamic range, 20 dB per microsecond, up to 8 points for curve definition
Measurement Mode:Pulse-Echo (P-E) range 0.025 in to 100 ft. (0.63mm to 3048 cm).
Auto-Cal:Provides automatic calibration with two reference points
