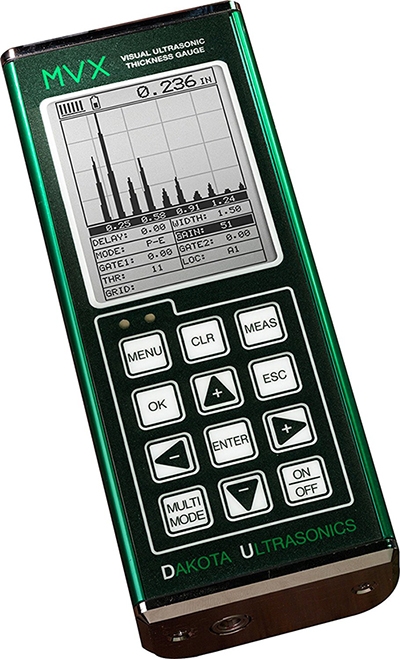

The Dakota Ultrasonics MVX Ultrasonic Thickness Gauge Z-149-0004 with Enhanced Display is a precision instruments that offers a series of advanced features including A-Scan, B-Scan as well as a complete alphanumeric datalogging system with storage capacity of thousands of data values and A-scan captures. The MVX features the highest resolution graphic LCD on the market and is especially engineered for optimal ease of use. It is supplied as a complete kit with all accessories in carrying case with FREE software, transfer cable and NIST-Traceable Calibration Certificate.
The MVX is equipped with multiple viewing options to provide users with a complete set of inspection tools: (RF waveform, +/- Rectified waveform, Time based B-Scan, and Large Digits).
Use the visual alarm to set hi and lo limits for applications requiring specific tolerances. If the actual thickness value is above or below the limits, a red light is illuminated
The A-Scan rectified mode is commonly used for detecting flaws/pits in pulse-echo mode and measuring through paint and coatings in echo-echo mode
Use the find feature to locate the detection point, while automatically adjusting the display to bring the signal into view
The time-based B-Scan feature of the MVX displays a cross section of the test material. It is commonly used to display the profile of the bottom surface of the test material
MVX also comes complete with our Windows PC software for transferring data to and from a PC
Built in hardware AGC gain control for through paint measurements in multi mode operation
Includes Flaw Inspection - Prove Up Mode, (special probe required)
The MVX has the ability to store 64 custom user defined setups. All factory setups can be selected, edited and saved to any setup location.
The high speed scan feature speeds up the inspection process by making 32 measurements per second. Remove transducer from the tesst material, and display the minimum measurement scanned
Typically operates for 150 hours on alkaline and 100 hours on NiCad
Auto Power off
if idle 5 min
Display
1/8 in. VGA grayscale display 62 x 45.7mm
Keyboard
Membrane switch with twelve tactile keys
Case
Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed).
Operating Temperature
-14° to 140°F (-10° to 60°C)
Weigth, net
383 grams
Dimensions
63.5 W x 165 H x 31.5 D mm
Warranty
2 year limited
Certification
CE Approved, Factory calibration traceable to national standards
