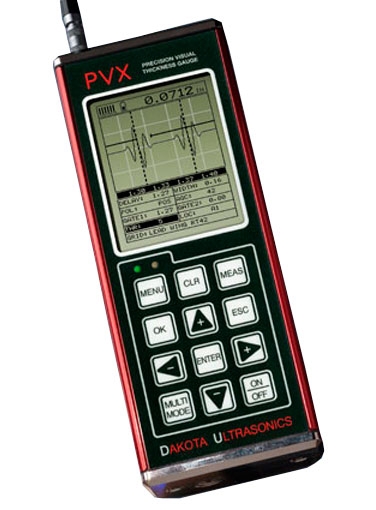

The Dakota Ultrasonics PVX-5507 Precision Ultrasonic A-scan Thickness Gauge supplied with 1/4" 15MHz Delay Line Probe instead of Pencil Probe is a precision measuring instrument that provides the flexibility necessary for both high resolution and penetration requirements. It's ability to use a variety of single element transducers for specific applications: Standard Delay Line (acrylic and graphite tips for metals and thin plastics), Pencil Delay Line (tough access area on thin materials), and Contact transducers (variety of applications) makes it the perfect flexibel tool for very precise and delicate measurements. The adjustable resolution settings add to the PVX’s flexibilty. The selectable viewing options provide the user with additional flexibility during operation: (RF waveform, +/- Rectified waveform, and Large Digits with Scan Bar. The time based B-Scan feature displays a cross section of the test material. Displays the profile of the opposite surface of the material. The high speed scan feature speeds up the inspection process by making 32 measurements per second. Remove transducer from the test material and display the minimum measurement scanned.
Hardware AGC gain control for multiple echo and thru-paint measurement
2 year limited warranty
Multiple calibration options: One Point, Two Point, or selection from a Material List
PVX comes complete with our Windows PC software for transferring data to and from a PC
16 factory setups and 48 user-defined setups. User defined setups can be edited for custom applications
User-selected resolution of 0.001" or 0.0001" inch units and 0.01 or 0.001 in mm units
PVX is equipped with an alpha-numeric data logger to provide increased versatility for those custom reporting needs
Visual and audible alarm with hi and lo limit settings for specific application tolerances
The high speed scan feature
1/4" 15MHz Delay Line Probe p/n T-481-5507 also available when pencil probe is not needed. Specify TI-PVX-5507 to order as complete kit with this probe
Auto find features locates the detection point(s) and adjusts the display settings to bring the waveform into view
(selectable) +/- .001in (0.01 mm), or +/- .0001in - (.001mm).
Velocity Range
.0492 to .3936 in./ms 1250 to 9999 meters/sec
Units
English & Metric
Memory
16 megabit non-volatile ram
Data Logger
12,000 readings and waveforms (alpha numeric storage).
Display
1/8 in. VGA grayscale display
Setups
16 factory and 48 user-defined setups
Display Views
A-Scan Rectified +/- (half wave view) RF (full waveform view) B-Scan Time based cross section view. Display speed of 15 secs per screen. Large Digits Standard thickness view. Digit Height; 0.400 in (10mm).
Power Source
Three 1.5V alkaline or 1.2V NiCad AA cells
Battery Life
Typically operates for 150 hours on alkaline and 100 hours on NiCad
Power off
Auto power off if idle 5 min
Operating Temperature
-14° to 140°F (-10° to 60°C).
Size
2.5 W x 6.5 H x 1.24 D inches (63.5 W x 165 H x 31.5 D mm)
(selectable) +/- .001in (0.01 mm), or +/- .0001in - (.001mm).
Velocity Range
.0492 to .3936 in./ms 1250 to 9999 meters/sec
Units
English & Metric
Memory
16 megabit non-volatile ram
Data Logger
12,000 readings and waveforms (alpha numeric storage).
Display
1/8 in. VGA grayscale display
Setups
16 factory and 48 user-defined setups
Display Views
A-Scan Rectified +/- (half wave view) RF (full waveform view) B-Scan Time based cross section view. Display speed of 15 secs per screen. Large Digits Standard thickness view. Digit Height; 0.400 in (10mm).
Power Source
Three 1.5V alkaline or 1.2V NiCad AA cells
Battery Life
Typically operates for 150 hours on alkaline and 100 hours on NiCad
Power off
Auto power off if idle 5 min
Operating Temperature
-14° to 140°F (-10° to 60°C).
Size
2.5 W x 6.5 H x 1.24 D inches (63.5 W x 165 H x 31.5 D mm)
Weight
0.4 kg (0.9 lbs )
Warranty
Gauge; 2 Years Probe; 90 Days
