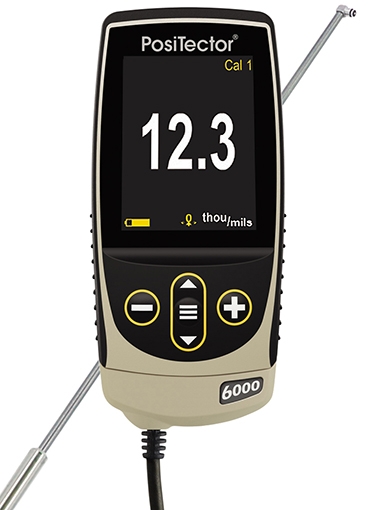

DeFelsko F90ES1-G PosiTector 6000 F90ES1 Standard Ferrous Coating Thickness Gage
The DeFelsko F90ES1-G PosiTector 6000 F90ES1 Standard Ferrous Coating Thickness Gage is a precise, rugged tester designed to measure coating thickness on Ferrous Metals accurately and quickly using magnetic induction principles. The F90ES1 features an extended 90 degree cabled microprobe for measuring non-magnetic coatings on steel substrates. With a small measuring tip, longest probe length and best thin film accuracy, this instrument is ideal for measuring on small parts, hard-to-reach areas, or close to edges. The DeFelsko F90ES1-G Positector 6000 F90ES1 Standard Ferrous Coating Thickness Gauges has a large 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation, 1,000 in one group memory reading storage capacity and USB data output.
NEW Faster measurement speed - 60+ readings per minute Ready to measure - no calibration adjustment required for most applications Enhanced one-handed menu navigation Flashing display - ideal in a noisy environment RESET feature instantly restores factory settings Solvent, acid, oil, water and dust resistant - weatherproof Wear-resistant probe tip Shock-absorbing, protective rubber holster with belt clip Two year warranty on gage body AND probe Certificate of Calibration showing traceability to NIST or PTB included (Long Form) Built-in temperature compensation ensures measurement accuracy Hi-RES mode increases displayed resolution for use on applications that require greater precision Conforms to national and international standards including ISO and ASTM Multiple Calibration adjustment options including 1 point, 2 point, known thickness, average zero Selectable display languages High contrast LCD with backlit display Flip display enables right-side-up viewing Extended cables available (up to 75 m/250 ft) for underwater or remote measuring Uses alkaline or rechargeable batteries (built-in charger) Mils/Microns/mm switchable Statistics mode continually displays/updates average, standard deviation, min/max thickness and number of readings while measuring HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits NEW Enhanced FAST mode - 90+ readings per minute for quick inspection Sealed USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
Measuring principle
magnetic induction principle (Ferrous) eddy-current principle (Non-Ferrous)
Display
High contrast, reversible color LCD
Data Output
USB - "1" & "3" Models | Bluetooth - "3" Models
Power
3 AAA batteries, Included
Dimensions
5.75" x 2.5" x 1.2" (146 x 64 x 31 mm)
Weight
5.8 oz. (165 g) without batteries
Protection Class
Meets or exceeds IP5X, Solvent, acid, oil, water & dust resistant
Warranty
2 Years
Calibration Certificate
Certificate of Calibration showing traceability to NIST included
More Information
Product Specifications
Measuring principle
magnetic induction principle (Ferrous) eddy-current principle (Non-Ferrous)
Display
High contrast, reversible color LCD
Data Output
USB - "1" & "3" Models | Bluetooth - "3" Models
Power
3 AAA batteries, Included
Dimensions
5.75" x 2.5" x 1.2" (146 x 64 x 31 mm)
Weight
5.8 oz. (165 g) without batteries
Protection Class
Meets or exceeds IP5X, Solvent, acid, oil, water & dust resistant
Warranty
2 Years
Calibration Certificate
Certificate of Calibration showing traceability to NIST included
Product Features
NEW Faster measurement speed - 60+ readings per minute Ready to measure - no calibration adjustment required for most applications Enhanced one-handed menu navigation Flashing display - ideal in a noisy environment RESET feature instantly restores factory settings Solvent, acid, oil, water and dust resistant - weatherproof Wear-resistant probe tip Shock-absorbing, protective rubber holster with belt clip Two year warranty on gage body AND probe Certificate of Calibration showing traceability to NIST or PTB included (Long Form) Built-in temperature compensation ensures measurement accuracy Hi-RES mode increases displayed resolution for use on applications that require greater precision Conforms to national and international standards including ISO and ASTM Multiple Calibration adjustment options including 1 point, 2 point, known thickness, average zero Selectable display languages High contrast LCD with backlit display Flip display enables right-side-up viewing Extended cables available (up to 75 m/250 ft) for underwater or remote measuring Uses alkaline or rechargeable batteries (built-in charger) Mils/Microns/mm switchable Statistics mode continually displays/updates average, standard deviation, min/max thickness and number of readings while measuring HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits NEW Enhanced FAST mode - 90+ readings per minute for quick inspection Sealed USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
Downloads
