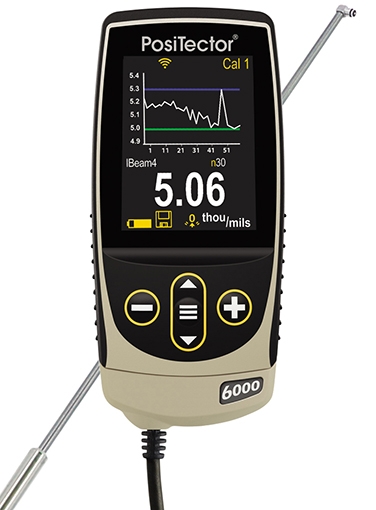

The DeFelsko F90ES3-G PosiTector 6000 F90ES3 Advanced Ferrous Coating Thickness Gage is a precise, rugged tester designed to measure coating thickness on ferrous metals accurately and quickly using magnetic induction principles.The F90ES3 features an extended 90 degree microprobe for measuring non-magnetic coatings on steel substrates. With a small measuring tip, longest probe length and best thin film accuracy, this instrument is ideal for measuring on small parts, hard-to-reach areas, or close to edges. The DeFelsko PosiTector 6000 F90ES3 Advanced Body features a large 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation, 250,000 in up to 1000 groups memory reading storage capacity, USB data output, Scan Mode, Real-Time Graphing Bluetooth output and more.
Storage of 250,000 readings in up to 1,000 batches and sub-batches
Live graphing of measurement data
3 Scan Modes - increase measurement speed to 180+ readings per minute
Normal - take continuous readings without lifting the probe
NEW Statistics - take continuous readings and record average, standard deviation, min/max thickness and number of readings while scanning
NEW Limited Count Average - take continuous readings up to a user-specified count. The gage displays and records the average of the readings.
Multiple stored calibration adjustments for measuring on a variety of substrate conditions
Multiple stored calibration adjustments for measuring on a variety of substrate conditions
SSPC-PA 2 feature determines if film thickness over a large area conforms to user-specified min/max levels
PSPC 90/10 feature determines if a coating system complies with an IMO performance standard for protective coatings
Onscreen Batch Annotation-add notes, change batch names and more with built-in QWERTY keyboard
WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software
Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols
magnetic induction principle (Ferrous) | eddy-current principle (Non-Ferrous)
Display
High contrast, reversible color LCD
Data Output
USB - "1" & "3" Models | Bluetooth - "3" Models
Power
3 AAA batteries, Included
Dimensions
5.75" x 2.5" x 1.2" (146 x 64 x 31 mm)
Weight
5.8 oz. (165 g) without batteries
Protection Class
Meets or exceeds IP5X, Solvent, acid, oil, water & dust resistant
Warranty
2 Years
Calibration Certificate
Certificate of Calibration showing traceability to NIST included
Product Features
Includes ALL features as shown on left plus
Storage of 250,000 readings in up to 1,000 batches and sub-batches
Live graphing of measurement data
3 Scan Modes - increase measurement speed to 180+ readings per minute
Normal - take continuous readings without lifting the probe
NEW Statistics - take continuous readings and record average, standard deviation, min/max thickness and number of readings while scanning
NEW Limited Count Average - take continuous readings up to a user-specified count. The gage displays and records the average of the readings.
Multiple stored calibration adjustments for measuring on a variety of substrate conditions
Multiple stored calibration adjustments for measuring on a variety of substrate conditions
SSPC-PA 2 feature determines if film thickness over a large area conforms to user-specified min/max levels
PSPC 90/10 feature determines if a coating system complies with an IMO performance standard for protective coatings
Onscreen Batch Annotation-add notes, change batch names and more with built-in QWERTY keyboard
WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software
Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols
