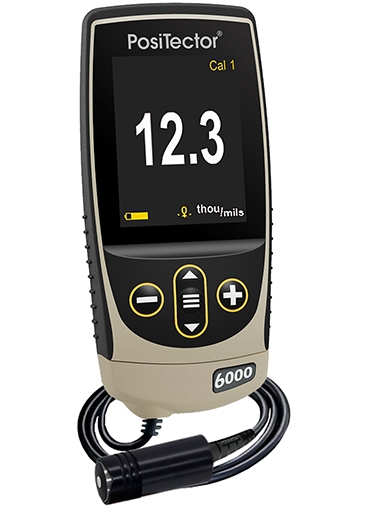

DeFelsko FJS1-G Positector 6000 FJS1 Coating Thickness Gauge with Standard Body, Cabled Probe, Measures Coatings on Ferrous Metals, 0 - 1.0"
The DeFelsko FJS1-G Positector 6000 FJS1 Coating Thickness Gauge with Standard Body, Cabled Probe, Measures Coatings on Ferrous Metals, 0 - 1.0" is a precise, rugged tester designed to measure coating thickness on ferrous metals accurately and quickly using magnetic induction principles. The PosiTector FJS1 is ideal for measuring thick epoxies, rubbers, fireproofing and other thick protective coatings applied to steel. The FJS1 electro-magnetic probe is less susceptible to the effects of substrate roughness, curvature, material, and alloy. The DeFelsko FJS1-G Positector 6000 FJS1 Standard Coating Thickness Gauges has a large 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation, 1,000 in one group memory reading storage capacity and USB data output.
NEW Faster measurement speed - 60+ readings per minute Ready to measure - no calibration adjustment required for most applications Enhanced one-handed menu navigation Flashing display - ideal in a noisy environment RESET feature instantly restores factory settings Solvent, acid, oil, water and dust resistant - weatherproof Wear-resistant probe tip Shock-absorbing, protective rubber holster with belt clip Certificate of Calibration showing traceability to NIST or PTB included (Long Form) Hi-RES mode increases displayed resolution for use on applications that require greater precision Conforms to national and international standards including ISO and ASTM Multiple Calibration adjustment options including 1 point, 2 point, known thickness, average zero Selectable display languages High contrast LCD with backlit display Flip display enables right-side-up viewing Extended cables available (up to 75 m/250 ft) for underwater or remote measuring Uses alkaline or rechargeable batteries (built-in charger) Mils/Microns/mm switchable Statistics mode continually displays/updates average, standard deviation, min/max thickness and number of readings while measuring HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits NEW Enhanced FAST mode - 90+ readings per minute for quick inspection Sealed USB port for fast, simple connection to a PC and to supply continuous power. USB cable included Storage of 1,000 readings per probe - stored readings can be viewed or downloaded
Measuring principle
magnetic induction principle (Ferrous) eddy-current principle (Non-Ferrous)
Display
High contrast, reversible color LCD
Data Output
USB - "1" & "3" Models Bluetooth - "3" Models
Power
3 AAA batteries, Included
Dimensions
5.75" x 2.5" x 1.2" (146 x 64 x 31 mm)
Weight
5.8 oz. (165 g) without batteries
Protection Class
Meets or exceeds IP5X, Solvent, acid, oil, water & dust resistant
Warranty
2 Years
Calibration Certificate
Certificate of Calibration showing traceability to NIST included
More Information
Product Specifications
Measuring principle
magnetic induction principle (Ferrous) eddy-current principle (Non-Ferrous)
Display
High contrast, reversible color LCD
Data Output
USB - "1" & "3" Models Bluetooth - "3" Models
Power
3 AAA batteries, Included
Dimensions
5.75" x 2.5" x 1.2" (146 x 64 x 31 mm)
Weight
5.8 oz. (165 g) without batteries
Protection Class
Meets or exceeds IP5X, Solvent, acid, oil, water & dust resistant
Warranty
2 Years
Calibration Certificate
Certificate of Calibration showing traceability to NIST included
Product Features
NEW Faster measurement speed - 60+ readings per minute Ready to measure - no calibration adjustment required for most applications Enhanced one-handed menu navigation Flashing display - ideal in a noisy environment RESET feature instantly restores factory settings Solvent, acid, oil, water and dust resistant - weatherproof Wear-resistant probe tip Shock-absorbing, protective rubber holster with belt clip Certificate of Calibration showing traceability to NIST or PTB included (Long Form) Hi-RES mode increases displayed resolution for use on applications that require greater precision Conforms to national and international standards including ISO and ASTM Multiple Calibration adjustment options including 1 point, 2 point, known thickness, average zero Selectable display languages High contrast LCD with backlit display Flip display enables right-side-up viewing Extended cables available (up to 75 m/250 ft) for underwater or remote measuring Uses alkaline or rechargeable batteries (built-in charger) Mils/Microns/mm switchable Statistics mode continually displays/updates average, standard deviation, min/max thickness and number of readings while measuring HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits NEW Enhanced FAST mode - 90+ readings per minute for quick inspection Sealed USB port for fast, simple connection to a PC and to supply continuous power. USB cable included Storage of 1,000 readings per probe - stored readings can be viewed or downloaded
