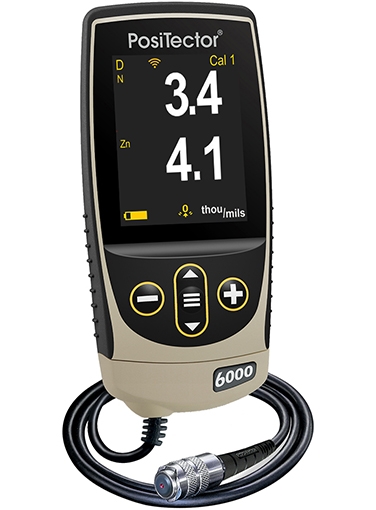

The DeFelsko FNDS3-G PosiTector 6000 FNDS3 Coating Thickness Gauge with Advanced Body, Duplex Coatings Cabled Probe, Measures Coatings on All Metals, 0-60 mils is a precise, rugged tester designed to measure coating thickness on all metals accurately and quickly using magnetic or eddy current principles. The PosiTector 6000 FNDS probe measures the individual thicknesses of both the paint and the zinc layers in a duplex coating system with a single reading. Duplex coating systems use a combination of two corrosion protection systems – typically paint or powder coating over galvanized steel (hot-dip, electro or zinc spray metallizing). The resultant corrosion protection is superior to either protection system used independently. In Duplex mode, the PosiTector 6000 FNDS utilizes both magnetic (ferrous) and eddy current (non-ferrous) principles simultaneously to calculate and display the individual paint and zinc layer thicknesses. The magnetic principle is used to measure the combined paint/zinc thickness over the ferrous substrate, and the eddy current principle is used to measure the paint thickness over the non-ferrous zinc coating. The zinc thickness is calculated by subtracting the paint thickness from the combined paint/zinc thickness measurement. The Positector 6000 FNDS3 Advanced Coating Thickness Gauge features a large 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation, 250,000 in up to 1000 groups memory reading storage capacity, USB data output, Scan Mode, Real-Time Graphing Bluetooth output and more.
Bluetooth Wireless Technology for data transfer to a PC or optional portable printer
WiFi technology wirelessly communicates with PosiSoft.net, downloads software updates and provides access to the gages stored measurement data using a standard web browser
USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
Reversible Display enables right side up viewing whether the gage is in your hand or on a work table
Multi-lingual Menu; English, Spanish, French, German, Portuguese, Chinese, Japanese, Norwegian, Russian, Czech and Italian
Thick impact resistant Lexan display is backlit for easy viewing in dim or dark environments
Built-in temperature compensation ensures measurement accuracy
No Calibration required for most applications
Two (2) year warranty - Made in the USA
User-selected units of mils or m.
Average Zero Feature; allows for multiple "zero measurements" ideal for measurements on rough substrates
All models supplied with protective rubber holster with belt clip and NIST-Traceable Calibration Certificate supplied in Nylon carry case with shoulder strap
High Resolution mode increases the displayed resolution for use on applications that require greater precision
External probe for general purpose paint and coating applications
Conforms to ISO 2178 / 2360 / 2808, PrEN ISO 19840, ASTM B499 / D1186 / D1400 / D7091 / E376 / G12, BS3900-C5, SSPC-PA2 and others
All Regular Separate Probes suitable for underwater use
Magnetic induction principle (Ferrous) eddy-current principle (Non-Ferrous)
Display
High contrast, reversible color LCD
Data Output
IR & USB - "3" Models Bluetooth - "3" Models
Surface Temp.
Maximum 120 °F / 49 °C
Power
3 AAA batteries, Included
Dimensions
5.75" x 2.5" x 1.2" (146 x 64 x 31 mm)
Weight
5.8 oz. (165 g) without batteries
Protection Class
Meets or exceeds IP5X, Solvent, acid, oil, water & dust resistant
Warranty
2 Years
Calibration Certificate
Certificate of Calibration showing traceability to NIST included
Min. Concave Radius
1 inch (2" OD)
Kit Contents
All Gauges are supplied as a complete kit including precision plastic shims, protective rubber holster with belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to NIST, USB cable, two (2) year warranty.
Magnetic induction principle (Ferrous) eddy-current principle (Non-Ferrous)
Display
High contrast, reversible color LCD
Data Output
IR & USB - "3" Models Bluetooth - "3" Models
Surface Temp.
Maximum 120 °F / 49 °C
Power
3 AAA batteries, Included
Dimensions
5.75" x 2.5" x 1.2" (146 x 64 x 31 mm)
Weight
5.8 oz. (165 g) without batteries
Protection Class
Meets or exceeds IP5X, Solvent, acid, oil, water & dust resistant
Warranty
2 Years
Calibration Certificate
Certificate of Calibration showing traceability to NIST included
Min. Concave Radius
1 inch (2" OD)
Kit Contents
All Gauges are supplied as a complete kit including precision plastic shims, protective rubber holster with belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to NIST, USB cable, two (2) year warranty.
Product Features
Bluetooth Wireless Technology for data transfer to a PC or optional portable printer
WiFi technology wirelessly communicates with PosiSoft.net, downloads software updates and provides access to the gages stored measurement data using a standard web browser
USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
Reversible Display enables right side up viewing whether the gage is in your hand or on a work table
Multi-lingual Menu; English, Spanish, French, German, Portuguese, Chinese, Japanese, Norwegian, Russian, Czech and Italian
Thick impact resistant Lexan display is backlit for easy viewing in dim or dark environments
Built-in temperature compensation ensures measurement accuracy
No Calibration required for most applications
Two (2) year warranty - Made in the USA
User-selected units of mils or m.
Average Zero Feature; allows for multiple "zero measurements" ideal for measurements on rough substrates
All models supplied with protective rubber holster with belt clip and NIST-Traceable Calibration Certificate supplied in Nylon carry case with shoulder strap
High Resolution mode increases the displayed resolution for use on applications that require greater precision
External probe for general purpose paint and coating applications
Conforms to ISO 2178 / 2360 / 2808, PrEN ISO 19840, ASTM B499 / D1186 / D1400 / D7091 / E376 / G12, BS3900-C5, SSPC-PA2 and others
All Regular Separate Probes suitable for underwater use
