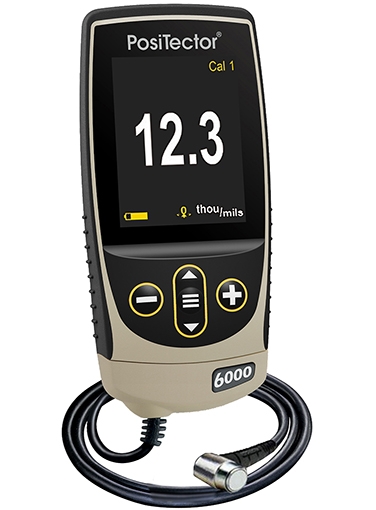

DeFelsko FTRS1-G PosiTector 6000 FTRS1 Coating Thickness Gauge with Standard Body, Cabled Right Angle Probe, Measures Coatings on Ferrous Metals, 0 - 250 mils
The DeFelsko FTRS1-G PosiTector 6000 FTRS1 Coating Thickness Gauge with Standard Body, Cabled Right Angle Probe, Measures Coatings on Ferrous Metals, 0 - 250 mils is a precise, rugged tester designed to measure coating thickness on ferrous metals accurately and quickly using magnetic induction principles. The PosiTector 6000 FTRS1 features a right angle probe for measuring within areas of low headroom. This stainless steel probe is ideal for thick protective coatings such as epoxy, rubber, concrete liners, intumescent fireproofing and more. The DeFelsko PosiTector 6000 FTRS1 Standard Ferrous Coating Thickness Gage features a NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation, 1000 in one group memory reading storage capacity and USB data output.
NEW Faster measurement speed - 60+ readings per minute Ready to measure - no calibration adjustment required for most applications Enhanced one-handed menu navigation Flashing display - ideal in a noisy environment RESET feature instantly restores factory settings Solvent, acid, oil, water and dust resistant - weatherproof Wear-resistant probe tip Shock-absorbing, protective rubber holster with belt clip Two year warranty on gage body AND probe Certificate of Calibration showing traceability to NIST or PTB included (Long Form) Built-in temperature compensation ensures measurement accuracy Hi-RES mode increases displayed resolution for use on applications that require greater precision Conforms to national and international standards including ISO and ASTM Multiple Calibration adjustment options including 1 point, 2 point, known thickness, average zero Selectable display languages High contrast LCD with backlit display Flip display enables right-side-up viewing Extended cables available (up to 75 m/250 ft) for underwater or remote measuring Uses alkaline or rechargeable batteries (built-in charger) Mils/Microns/mm switchable Statistics mode continually displays/updates average, standard deviation, min/max thickness and number of readings while measuring HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits NEW Enhanced FAST mode - 90+ readings per minute for quick inspection Sealed USB port for fast, simple connection to a PC and to supply continuous power. USB cable included Software Updates via web keep your gage current Screen Capture record and save image into USB flash memory for record keeping and review Software Solutions for viewing, analyzing & reporting data Every stored measurement is date and time stamped Storage of 1000 readings per probe - stored readings can be viewed or downloaded
Measuring principle
magnetic induction principle (Ferrous)
Display
High contrast, reversible color LCD
Data Output
USB - "1" & "3" Models Bluetooth - "3" Models
Power
3 AAA batteries, Included
Dimensions
5.75" x 2.5" x 1.2" (146 x 64 x 31 mm)
Weight
5.8 oz. (165 g) without batteries
Protection Class
Meets or exceeds IP5X, Solvent, acid, oil, water & dust resistant
Warranty
2 Years
Calibration Certificate
Certificate of Calibration showing traceability to NIST included
More Information
Product Specifications
Measuring principle
magnetic induction principle (Ferrous)
Display
High contrast, reversible color LCD
Data Output
USB - "1" & "3" Models Bluetooth - "3" Models
Power
3 AAA batteries, Included
Dimensions
5.75" x 2.5" x 1.2" (146 x 64 x 31 mm)
Weight
5.8 oz. (165 g) without batteries
Protection Class
Meets or exceeds IP5X, Solvent, acid, oil, water & dust resistant
Warranty
2 Years
Calibration Certificate
Certificate of Calibration showing traceability to NIST included
Product Features
NEW Faster measurement speed - 60+ readings per minute Ready to measure - no calibration adjustment required for most applications Enhanced one-handed menu navigation Flashing display - ideal in a noisy environment RESET feature instantly restores factory settings Solvent, acid, oil, water and dust resistant - weatherproof Wear-resistant probe tip Shock-absorbing, protective rubber holster with belt clip Two year warranty on gage body AND probe Certificate of Calibration showing traceability to NIST or PTB included (Long Form) Built-in temperature compensation ensures measurement accuracy Hi-RES mode increases displayed resolution for use on applications that require greater precision Conforms to national and international standards including ISO and ASTM Multiple Calibration adjustment options including 1 point, 2 point, known thickness, average zero Selectable display languages High contrast LCD with backlit display Flip display enables right-side-up viewing Extended cables available (up to 75 m/250 ft) for underwater or remote measuring Uses alkaline or rechargeable batteries (built-in charger) Mils/Microns/mm switchable Statistics mode continually displays/updates average, standard deviation, min/max thickness and number of readings while measuring HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits NEW Enhanced FAST mode - 90+ readings per minute for quick inspection Sealed USB port for fast, simple connection to a PC and to supply continuous power. USB cable included Software Updates via web keep your gage current Screen Capture record and save image into USB flash memory for record keeping and review Software Solutions for viewing, analyzing & reporting data Every stored measurement is date and time stamped Storage of 1000 readings per probe - stored readings can be viewed or downloaded
