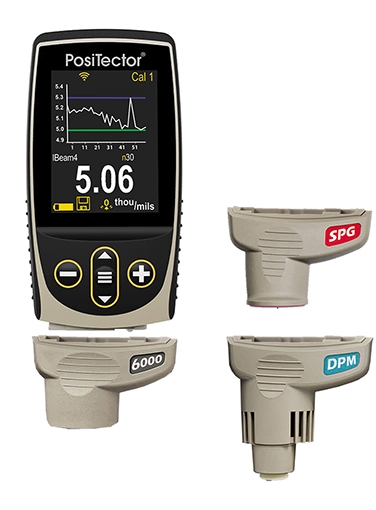

The DeFelsko KITF3 PosiTector Inspection Kit F3 with Advanced Gage Body, 6000-F Integral Ferrous Coating Thickness Probe, SPG Surface Profile Probe, and a DPM Environmental Probe is DeFelsko KITF3 PosiTector Inspection Kit contains a DeFelsko BDYADV-G PosiTector Advanced Body with NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation, memory for 250,000 data points, USB, WiFi and Bluetooth output and 3 Probes: PosiTector PRBF-D coating thickness probe 0 - 1500 um Ferrous Metals, PosiTector PRBDPM-C environmental dew point meter probe and PosiTector PRBSPG-B surface profile probe. The DeFelsko KITF3 PosiTector Inspection Kit F3 with Advanced Gage Body, 6000-F Integral Ferrous Coating Thickness Probe, SPG Surface Profile Probe, and a DPM Environmental Probe is PosiTector body accepts The DeFelsko KITF3 PosiTector Inspection Kit F3 with Advanced Gage Body, 6000-F Integral Ferrous Coating Thickness Probe, SPG Surface Profile Probe, and a DPM Environmental Probe is PosiTector 6000, DPM, and SPG probes included in The DeFelsko KITF3 PosiTector Inspection Kit F3 with Advanced Gage Body, 6000-F Integral Ferrous Coating Thickness Probe, SPG Surface Profile Probe, and a DPM Environmental Probe is kit easily converting from a coating thickness gauge to a dew point meter or surface profile gauge. The DeFelsko KITF3 PosiTector Inspection Kit F3 with Advanced Gage Body, 6000-F Integral Ferrous Coating Thickness Probe, SPG Surface Profile Probe, and a DPM Environmental Probe is KITF3 comes complete with a gauge body, coating thickness probe, environmental probe, surface profile probe, precision plastic shims, glass zero plate and metal shim, protective rubber holster with belt clip, wrist strap, 3 AAA alkaline batteries, 3 instruction manuals, hard shell case, protective lens shield, 3 Long Form Certificates of Calibration traceable to NIST, USB cable and 2 year warranty on gauge body and probes.
The KITF3 is ideal to convert from a coating thickness gauge to a dew point meter or surface profile gauge
Each PosiTector body accepts the 6000, DPM, and SPG probes included in the kit easily converting from a coating thickness gage to a dew point meter or surface profile gage
USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
Yes
PosiSoft USB – stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required
Yes
Connects to PosiSoft.net - free web-based application offering secure storage of thickness readings
Yes
WiFi technology wirelessly synchronizes with PosiSoft.net, downloads software updates, and connects to mobile devices for expanded functionality
Yes
Bluetooth Wireless Technology for data transfer to a PC or optional portable printer
Yes
Real Time Graphing, Picture Prompting, Batch Notes and Onscreen help
Yes
Statistics - Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring
Yes
Hi-Lo limits audibly and visibly alerts when measurements exceed your specified limits.
Yes
Reading Storage Capacity
250,000 in up to 1000 groups
SmartBatch allows entry of user-defined parameters and criteria to comply with various standards and test methods
Yes
Auto Log Mode automatically records all 5 parameters at user selected time intervals. Runs unattended on batteries or continuously via USB.
Yes
SmartBatch allows entry of user-defined parameters and criteria to comply with various standards and test methods
Yes
Trend Charts graph readings in real-time
Yes
User defined limits for all parameters with visible and audible warnings
Yes
FAST mode - faster measurement speed for quick inspection
Yes
SCAN mode - take continuous readings without lifting the probe
Yes
SSPC PA2 feature set determines if film thickness over a large area conforms to user-specified min/max levels
Yes
PSPC 90/10 feature determines if a coating system complies with an IMO performance standard for protective coatings
Yes
Multiple stored calibration adjustments for measuring on a variety of substrate conditions
Yes
Warranty
Two Years
Product Features
The KITF3 is ideal to convert from a coating thickness gauge to a dew point meter or surface profile gauge
Each PosiTector body accepts the 6000, DPM, and SPG probes included in the kit easily converting from a coating thickness gage to a dew point meter or surface profile gage
