DeFelsko KITPCDFTC PosiTest PC Powder Inspection Kit with PosiTest DFT Combo

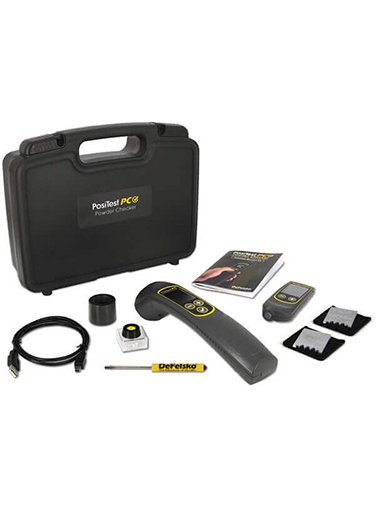

The DeFelsko KITPCDFTC PosiTest PC Powder Inspection Kit with PosiTest DFT Combo is a complete solution for measuring powder coating before and after cure. Each kit contains: DeFelsko PosiTest PC Uncured Powder Thickness Gage, DeFelsko PosiTest DFTF-C Ferrous Coating Thickness Gage and Two DeFelsko Powder Combs (models 1 and 4).
Dedicated stand-alone unit is ready to measure right out of the box Up to 4x faster measurement speed* ideal for moving lines and swinging parts Easy-to-read digital display with a simple, icon based menu Hand-held, battery operated Ergonomic and lightweight No calibration adjustment required for most powders Target Grid simultaneously displays distance to the part and alignment, making measurements easy RESET features instantly restores factory settings Solvent, acid, oil, water and dust resistant ideal for harsh powder coating environments Hard-shell carrying case included Replaceable screen protects the sensor Two year warranty Improved sensor technology allows easier measurement on small tubes, odd shapes and moving parts Easy 1 and 2 point calibration adjustment options with Cal Reset to improve accuracy on unusual powders or substrates Conforms to ASTM D7378 No cable to risk disturbing the applied powder Mils/microns switchable High contrast color display Adjustable display brightness for optimal visibility in any environment Toggle sound On and Off Uses alkaline or rechargeable batteries Storage of 999 readings with onscreen averaging. Stored readings can be downloaded to PosiSoft Desktop software Scan Mode continuously takes measurements - ideal for analyzing large areas USB Keyboard Mode emulates keystrokes to easily stream readings to a PC or PLC USB port for fast, simple connection to a PC and to supply continuous power Software updates keep your instrument current
Range*
20 – 100 µm (0.8–4.0 mils)
Resolution
1 µm (0.1 mil)
Accuracy
±5 µm (±0.2 mil)
Measurement Time
1–3 seconds
Measurement Distance to Powder
19 mm (0.75 inch)
Measurement Area
2 mm (0.08 inch)
*
Based on TGIC-Free polyester powder
More Information
Product Specifications
Range*
20 – 100 µm (0.8–4.0 mils)
Resolution
1 µm (0.1 mil)
Accuracy
±5 µm (±0.2 mil)
Measurement Time
1–3 seconds
Measurement Distance to Powder
19 mm (0.75 inch)
Measurement Area
2 mm (0.08 inch)
*
Based on TGIC-Free polyester powder
Product Features
Dedicated stand-alone unit is ready to measure right out of the box Up to 4x faster measurement speed* ideal for moving lines and swinging parts Easy-to-read digital display with a simple, icon based menu Hand-held, battery operated Ergonomic and lightweight No calibration adjustment required for most powders Target Grid simultaneously displays distance to the part and alignment, making measurements easy RESET features instantly restores factory settings Solvent, acid, oil, water and dust resistant ideal for harsh powder coating environments Hard-shell carrying case included Replaceable screen protects the sensor Two year warranty Improved sensor technology allows easier measurement on small tubes, odd shapes and moving parts Easy 1 and 2 point calibration adjustment options with Cal Reset to improve accuracy on unusual powders or substrates Conforms to ASTM D7378 No cable to risk disturbing the applied powder Mils/microns switchable High contrast color display Adjustable display brightness for optimal visibility in any environment Toggle sound On and Off Uses alkaline or rechargeable batteries Storage of 999 readings with onscreen averaging. Stored readings can be downloaded to PosiSoft Desktop software Scan Mode continuously takes measurements - ideal for analyzing large areas USB Keyboard Mode emulates keystrokes to easily stream readings to a PC or PLC USB port for fast, simple connection to a PC and to supply continuous power Software updates keep your instrument current
