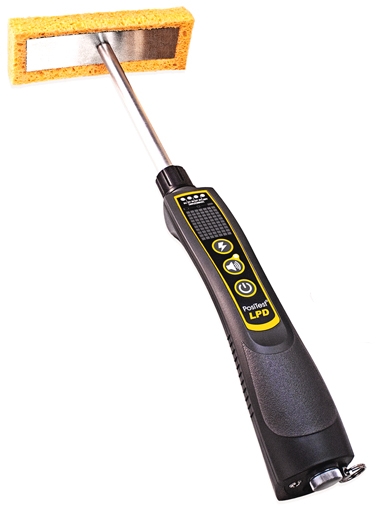

DeFelsko LPDKITB PosiTest LPD Low-Voltage Pinhole Detector Basic Kit
The DeFelsko LPDKITB PosiTest LPD Low-Voltage Pinhole Detector Basic Kit is a precision instrument that detects holidays, pinholes and other discontinuities on metal and concrete substrates, the ideal choice that provides the proven quality of DeFelsko Inspection Instruments. Featuring an easy-to-use interface with bright, multi-function LEDs and an audibly and visibly alerts when flaws are detected. This lightweight, ergonomic designed PosiTest LPD is equipped with automatic self-test verifying voltage calibration and regulation so no outputs will drop under load. The PosiTest LPD has the revolutionary technology of Ground Sense which visibly reassures the user that the instrument is properly grounded. Conforms to international standards including ISO, ASTM and NACE and includes a Long Form Certificate of Calibration.
Easy-to-use interface with bright, multi-function LEDs Ready to measure both kits come with everything needed for testing Audibly and visibly alerts when flaws are detected Lightweight, ergonomic design Rugged, environmentally sealed enclosure Weatherproof, dustproof and shockproof meets or exceeds IP65 Two year warranty Automatic self-test verifies voltage calibration Regulated voltage outputs will not drop under load Long Form Certificate of Calibration included GroundSenseTM visibly reassures the user that the instrument is properly grounded Conforms to international standards including ISO, ASTM and NACE A wide range of adaptable sponge hardware for a variety of test configurations Common threads and connectors allow for maximum flexibility Headphone jack with included earbud for noisy environments Uses 3 AAA alkaline or rechargeable batteries 4 voltage output options conform to a variety of standards
Voltage
9V ± 5% | 67.5V ± 5% | 67.5V ± 5% | 90V ± 5%
Sensitivity
90k? ± 3% | 80k? ± 3% | 90k? ± 3% | 400k? ± 3%
Thickness Range
0 – 500 µm (0 – 20 mils)
Temperature Range
-10 – 50° C (14 – 122° F)
Battery Life
> 150 hrs (depending on battery type)
IP Rating
meets or exceeds IP65
More Information
Product Specifications
Voltage
9V ± 5% | 67.5V ± 5% | 67.5V ± 5% | 90V ± 5%
Sensitivity
90k? ± 3% | 80k? ± 3% | 90k? ± 3% | 400k? ± 3%
Thickness Range
0 – 500 µm (0 – 20 mils)
Temperature Range
-10 – 50° C (14 – 122° F)
Battery Life
> 150 hrs (depending on battery type)
IP Rating
meets or exceeds IP65
Product Features
Easy-to-use interface with bright, multi-function LEDs Ready to measure both kits come with everything needed for testing Audibly and visibly alerts when flaws are detected Lightweight, ergonomic design Rugged, environmentally sealed enclosure Weatherproof, dustproof and shockproof meets or exceeds IP65 Two year warranty Automatic self-test verifies voltage calibration Regulated voltage outputs will not drop under load Long Form Certificate of Calibration included GroundSenseTM visibly reassures the user that the instrument is properly grounded Conforms to international standards including ISO, ASTM and NACE A wide range of adaptable sponge hardware for a variety of test configurations Common threads and connectors allow for maximum flexibility Headphone jack with included earbud for noisy environments Uses 3 AAA alkaline or rechargeable batteries 4 voltage output options conform to a variety of standards
