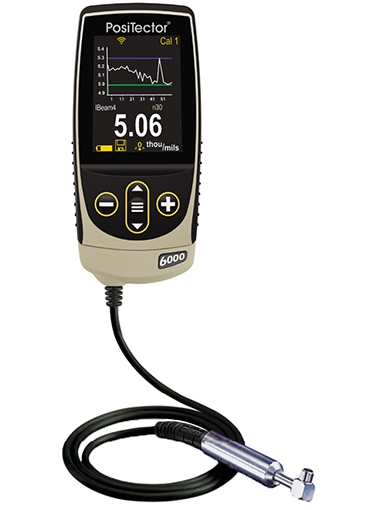

The DeFelsko N90S3-G Positector 6000 N90S3 Coating Thickness Gauge with Advanced Body, 90° Microprobe, Measures Coatings on Non-Ferrous Metals, 0 - 25 mils is a precise, rugged tester designed to measure coating thickness on ferrous and or non-ferrous metals accurately and quickly using eddy current principles. The N90S3 features a right angle probe for measuring within areas of low headroom. With a small measuring tip and best thin-film accuracy, the DeFelsko PosiTector 6000 N90S3 is ideal for measuring on small parts, hard-to-reach areas, or close to edges. The DeFelsko N90S3-G PosiTector 6000 N90S3 Advanced Non-Ferrous Coating Thickness Gauges has a large 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation, 250,000 in up to 1000 groups memory reading storage capacity, USB data output, Scan Mode, Real-Time Graphing Bluetooth output and more.
Bluetooth Wireless Technology for data transfer to a PC or optional portable printer
WiFi technology wirelessly communicates with PosiSoft.net, downloads software updates and provides access to the gages stored measurement data using a standard web browser
USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
Reversible Display enables right side up viewing whether the gage is in your hand or on a work table
Multi-lingual Menu; English, Spanish, French, German, Portuguese, Chinese, Japanese, Norwegian, Russian, Czech and Italian
Thick impact resistant Lexan display is backlit for easy viewing in dim or dark environments
Built-in temperature compensation ensures measurement accuracy
No Calibration required for most applications
Two (2) year warranty - Made in the USA
User-selected units of mils or m.
Average Zero Feature; allows for multiple "zero measurements" ideal for measurements on rough substrates
All models supplied with protective rubber holster with belt clip and NIST-Traceable Calibration Certificate supplied in Nylon carry case with shoulder strap
High Resolution mode increases the displayed resolution for use on applications that require greater precision
High Resolution mode increases the displayed resolution for use on applications that require greater precision
Conforms to ISO 2178 / 2360 / 2808, PrEN ISO 19840, ASTM B499 / D1186 / D1400 / D7091 / E376 / G12, BS3900-C5, SSPC-PA2 and others
All Regular Separate Probes suitable for underwater use
magnetic induction principle (Ferrous) eddy-current principle (Non-Ferrous)
Display
Backlit & Reversible LCD
Data Output
IR & USB - "2" & "3" Models Bluetooth - "3" Models
Surface Temp.
Maximum 120 °F / 49 °C
Power
3 AAA batteries, Included
Dimensions
5.75" x 2.5" x 1.2" (146 x 64 x 31 mm)
Weight
5.8 oz. (165 g) without batteries
Protection Class
Meets or exceeds IP5X, Solvent, acid, oil, water & dust resistant
Warranty
2 Years
Calibration Certificate
Certificate of Calibration showing traceability to NIST included
Min. Concave Radius
1 inch (2" OD)
Kit Contents
All Gauges are supplied as a complete kit including precision plastic shims, protective rubber holster with belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to NIST, USB cable, two (2) year warranty.
magnetic induction principle (Ferrous) eddy-current principle (Non-Ferrous)
Display
Backlit & Reversible LCD
Data Output
IR & USB - "2" & "3" Models Bluetooth - "3" Models
Surface Temp.
Maximum 120 °F / 49 °C
Power
3 AAA batteries, Included
Dimensions
5.75" x 2.5" x 1.2" (146 x 64 x 31 mm)
Weight
5.8 oz. (165 g) without batteries
Protection Class
Meets or exceeds IP5X, Solvent, acid, oil, water & dust resistant
Warranty
2 Years
Calibration Certificate
Certificate of Calibration showing traceability to NIST included
Min. Concave Radius
1 inch (2" OD)
Kit Contents
All Gauges are supplied as a complete kit including precision plastic shims, protective rubber holster with belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to NIST, USB cable, two (2) year warranty.
Product Features
Bluetooth Wireless Technology for data transfer to a PC or optional portable printer
WiFi technology wirelessly communicates with PosiSoft.net, downloads software updates and provides access to the gages stored measurement data using a standard web browser
USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
Reversible Display enables right side up viewing whether the gage is in your hand or on a work table
Multi-lingual Menu; English, Spanish, French, German, Portuguese, Chinese, Japanese, Norwegian, Russian, Czech and Italian
Thick impact resistant Lexan display is backlit for easy viewing in dim or dark environments
Built-in temperature compensation ensures measurement accuracy
No Calibration required for most applications
Two (2) year warranty - Made in the USA
User-selected units of mils or m.
Average Zero Feature; allows for multiple "zero measurements" ideal for measurements on rough substrates
All models supplied with protective rubber holster with belt clip and NIST-Traceable Calibration Certificate supplied in Nylon carry case with shoulder strap
High Resolution mode increases the displayed resolution for use on applications that require greater precision
High Resolution mode increases the displayed resolution for use on applications that require greater precision
Conforms to ISO 2178 / 2360 / 2808, PrEN ISO 19840, ASTM B499 / D1186 / D1400 / D7091 / E376 / G12, BS3900-C5, SSPC-PA2 and others
All Regular Separate Probes suitable for underwater use
