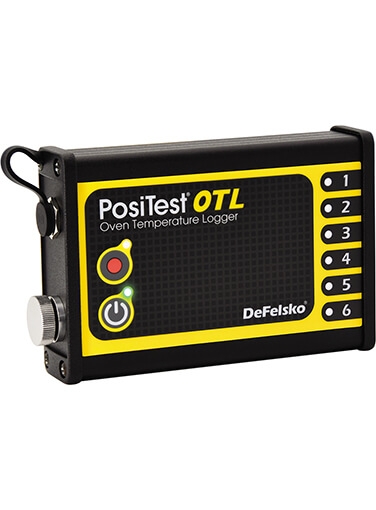

DeFelsko PosiTest OTLKIT Oven Temperature Logger Kit
The DeFelsko PosiTest OTLKIT Oven Temperature Logger Kit is ideal for measuring and recording oven temperature profiles during curing. Simultaneously measure up to 6 different temperatures at a time with a variety of air and surface temperature probes (sold separately).
Simple, easy-to-use interface 6 K-type thermocouple ports (channels) Measures and records up to 40,000 datasets (240,000 readings) into 6 independent batches Records measurements every 2 seconds for up to 22 hours of recording time Download, view, and analyze batch data using PosiSoft Desktop Software. Export .CSV files for easy import into spreadsheets. Bright LEDs indicate logger status at a glance High temperature stainless steel barrier box with fiberglass insulation for long run times at high temperatures. Contains no silicone. Certificate of calibration showing traceability to NIST included
Channels
6 K-type non-grounded thermocouples
Thermocouple Measurement Range
-100 to 1000ºC -148 to 1832ºF
Logger Operating Temperature Range PosiTest OTL without Holder or Barrier Box
0 to 70º C 32 to 158º F
Logger Accuracy
±0.5º C ±0.9º F
Resolution
0.1º C 0.1º F
Memory
40,000 Datasets. Each Dataset consists of up to 6 channels.
Sample Interval
2 seconds (Fixed) Maximum recording time is 22 hours
Power Source
2 AAA batteries
Battery Life
30 hours (recording time)
Size
48 x 35 x 19 mm (19" x 14" x 7.5")
Weight*
9 kg (20 lbs.)
*
Weight includes the PosiTest OTL Holder, and Barrier Box. Holder XT increases weight to 11 kg (25 lbs.)
More Information
Product Specifications
Channels
6 K-type non-grounded thermocouples
Thermocouple Measurement Range
-100 to 1000ºC -148 to 1832ºF
Logger Operating Temperature Range PosiTest OTL without Holder or Barrier Box
0 to 70º C 32 to 158º F
Logger Accuracy
±0.5º C ±0.9º F
Resolution
0.1º C 0.1º F
Memory
40,000 Datasets. Each Dataset consists of up to 6 channels.
Sample Interval
2 seconds (Fixed) Maximum recording time is 22 hours
Power Source
2 AAA batteries
Battery Life
30 hours (recording time)
Size
48 x 35 x 19 mm (19" x 14" x 7.5")
Weight*
9 kg (20 lbs.)
*
Weight includes the PosiTest OTL Holder, and Barrier Box. Holder XT increases weight to 11 kg (25 lbs.)
Product Features
Simple, easy-to-use interface 6 K-type thermocouple ports (channels) Measures and records up to 40,000 datasets (240,000 readings) into 6 independent batches Records measurements every 2 seconds for up to 22 hours of recording time Download, view, and analyze batch data using PosiSoft Desktop Software. Export .CSV files for easy import into spreadsheets. Bright LEDs indicate logger status at a glance High temperature stainless steel barrier box with fiberglass insulation for long run times at high temperatures. Contains no silicone. Certificate of calibration showing traceability to NIST included
