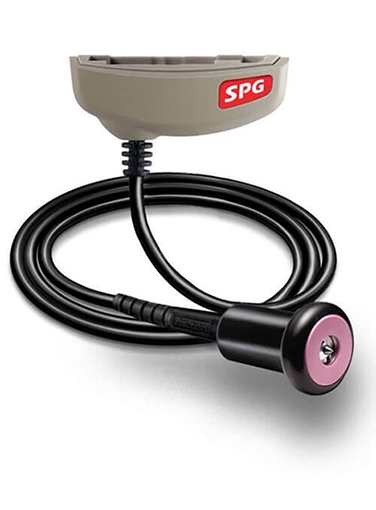

DeFelsko PRBSPGCS-B PosiTector SPG Surface Profile Gage Cabled Probe Only for Textured Coatings, Range 0 - 1500 um / 0 - 60 mils
The DeFelsko PRBSPGCS-B PosiTector SPG Surface Profile Gage Cabled Probe Only for Textured Coatings, Range 0 - 1500 um / 0 - 60 mils is designed to measure and record peak to valley surface profile heights on textured coatings.
Solvent, acid, oil, water, and dust resistant weatherproof Alumina wear face and tungsten carbide tip for long life and continuous accuracy field replaceable PosiTector interchangeable platform attach any PosiTector probe to a single gage body Fast measurement rate of over 50 readings per minute ideal for quickly and accurately measuring large surfaces USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software Certificate of Calibration showing traceability to PTB included (Long Form) Conforms to ASTM D4417-B, AS 3894.5-C (with optional 30 tip), U.S. Navy NSI 009-32, SANS 5772 and others
Application
Textured Coatings
Measuring Range
0 – 1500 ?m 0 – 60 mils
Accuraccy
± (5 ?m + 5%) ± (0.2 mil + 5%)
Tip
Angle
More Information
Product Specifications
Application
Textured Coatings
Measuring Range
0 – 1500 ?m 0 – 60 mils
Accuraccy
± (5 ?m + 5%) ± (0.2 mil + 5%)
Tip
Angle
Product Features
Solvent, acid, oil, water, and dust resistant weatherproof Alumina wear face and tungsten carbide tip for long life and continuous accuracy field replaceable PosiTector interchangeable platform attach any PosiTector probe to a single gage body Fast measurement rate of over 50 readings per minute ideal for quickly and accurately measuring large surfaces USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software Certificate of Calibration showing traceability to PTB included (Long Form) Conforms to ASTM D4417-B, AS 3894.5-C (with optional 30 tip), U.S. Navy NSI 009-32, SANS 5772 and others
Downloads
