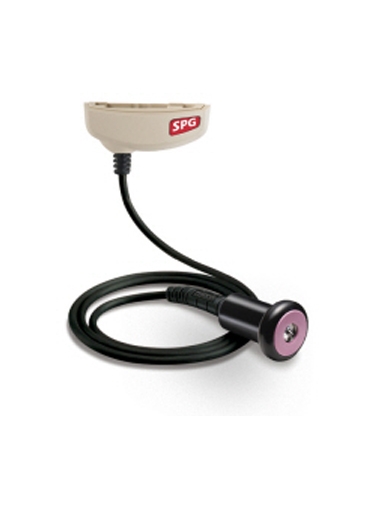

DeFelsko PRBSPGS-B PosiTector SPG Surface Profile Gage Cabled Probe Only for Blasted Steel, Range: 0 - 500 um / 0 - 20 mils
The DeFelsko PRBSPGS-B PosiTector SPG Surface Profile Gage Cabled Probe Only for Blasted Steel, Range: 0 - 500 um / 0 - 20 mils is designed to measure and record peak to valley surface profile heights on blasted steel.
Measures and records peak to valley surface profile heights All probes feature durable Alumina wear face and tungsten carbide tip for long life and continued accuracy
Measuring Range
0 to 500 um (0 - 20 mils) PT-SPGCS Models
Accuracy
+ (0.2 mils + 5%) + (5 microns + 5%)
Dimensions
137 x 61 x 28 mm (5.4" x 2.4" x 1.1")
Weight
140 g (4.9 oz.) without batteries
Conforms to
ASTM D4417-B, AS 3894.5-C (with optional 30° tip angle), U.S. Navy NSI 009-32, SANS 5772 and others
More Information
Product Specifications
Measuring Range
0 to 500 um (0 - 20 mils) PT-SPGCS Models
Accuracy
+ (0.2 mils + 5%) + (5 microns + 5%)
Dimensions
137 x 61 x 28 mm (5.4" x 2.4" x 1.1")
Weight
140 g (4.9 oz.) without batteries
Conforms to
ASTM D4417-B, AS 3894.5-C (with optional 30° tip angle), U.S. Navy NSI 009-32, SANS 5772 and others
Product Features
Measures and records peak to valley surface profile heights All probes feature durable Alumina wear face and tungsten carbide tip for long life and continued accuracy
