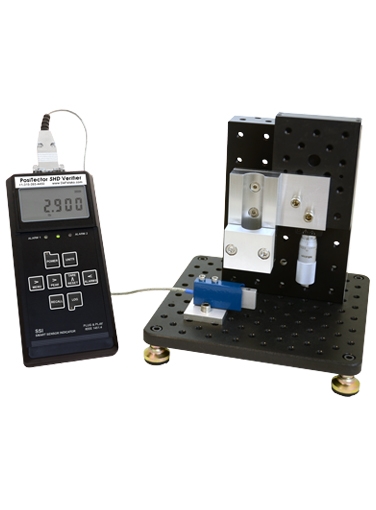

DeFelsko SHDVERIFY PosiTector SHD Verifier, Shore Hardness Durometer Accuracy Verification Kit
The DeFelsko SHDVERIFY PosiTector SHD Verifier, Shore Hardness Durometer Accuracy Verification Kit is ideal for checking the accuracy and operation of Shore hardness durometers and an important component in fulfilling both ISO and in-house quality control requirements. The PosiTector SHD Verifier and the included documents allow the user to certify the accuracy of PosiTector SHD Shore Hardness Durometers in-house.
Ready to use with all PosiTector Shore Hardness Durometers Comes with a Sample Certificate of Accuracy Certificates of Calibration showing traceability to NIST included for both the load cell and smart sensor indicator Fitted with replaceable Shore A or Shore D Targets to protect probe tips Ideal for field or laboratory use Portable requires no external power source One year warranty High precision load cell and handheld smart sensor indicator verifies PosiTector SHD Shore A and Shore D durometers Precise load control with micrometer adjustable stage
Range
0 - 10 lbs
Resolution
.001 lbs
Accuracy
± 0.004 lbs (+ 17.8 mN) / (± 0.04 Shore D) / (± 0.238 Shore A)
Case Size
15" x 12" x 10" (38.1 x 30.5 x 25.4 cm)
Shipping Weight
16.3 lbs (7.38 kg)
More Information
Product Specifications
Range
0 - 10 lbs
Resolution
.001 lbs
Accuracy
± 0.004 lbs (+ 17.8 mN) / (± 0.04 Shore D) / (± 0.238 Shore A)
Case Size
15" x 12" x 10" (38.1 x 30.5 x 25.4 cm)
Shipping Weight
16.3 lbs (7.38 kg)
Product Features
Ready to use with all PosiTector Shore Hardness Durometers Comes with a Sample Certificate of Accuracy Certificates of Calibration showing traceability to NIST included for both the load cell and smart sensor indicator Fitted with replaceable Shore A or Shore D Targets to protect probe tips Ideal for field or laboratory use Portable requires no external power source One year warranty High precision load cell and handheld smart sensor indicator verifies PosiTector SHD Shore A and Shore D durometers Precise load control with micrometer adjustable stage
