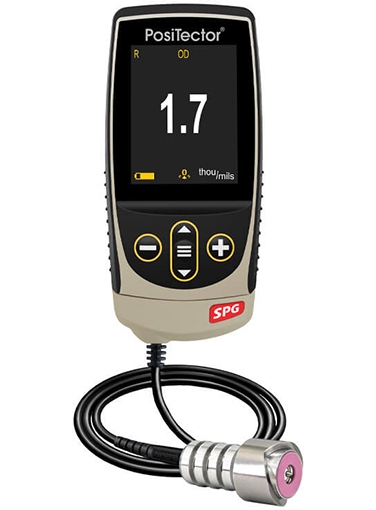

The DeFelsko SPGOS1-G PosiTector SPG OS1 Standard Surface Profile Gage for Blasted Steel is a surface profile gage ideal for measuring the peak-to-valley surface profile height of flat or convex surfaces with an OD above 3mm (0.125”) such as pipes and tanks.
30 degree tips available for conformance to Australian standard AS3894.5-C
SPG OS1
The PosiTector SPG OS is a surface profile gage ideal for measuring the peak-to-valley surface profile height of flat or convex surfaces with an OD above 3mm (0.125”) such as pipes and tanks
30 degree tips available for conformance to Australian standard AS3894.5-C
SPG OS1
The PosiTector SPG OS is a surface profile gage ideal for measuring the peak-to-valley surface profile height of flat or convex surfaces with an OD above 3mm (0.125”) such as pipes and tanks
Product Features
Fast measurement rate of over 50 readings per minute ideal for quickly and accurately measuring large surfaces
Enhanced one-handed menu navigation
RESET feature instantly restores factory settings
Alumina wear face and tungsten carbide tip for long life and continuous accuracy field replaceable tips
Solvent, acid, oil, water and dust resistant - weatherproof
Rugged, indoor/outdoor instrument - ideal for field or shop use
Shock-absorbing, protective rubber holster with belt clip
Two year warranty on gage body AND probe
Certificate of Calibration showing traceability to PTB included (Long Form)
Built-in temperature compensation ensures measurement accuracy
Glass Zero Plate and metal check shim included
Conforms to national and international standards including ASTM D4417 Method B and SSPC-PA17
30 angle interchangeable probe tip available for special surface profile applications
Cabled probes available for blasted steel, textured coatings and concrete profile
Selectable display languages
High contrast LCD with backlit display
Flip display enables right-side-up viewing
Uses alkaline or rechargeable batteries (built-in charger)
Mils/Microns switchable
Statistics mode continually displays/updates average, standard deviation, min/max depth and number of readings while measuring
HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
FAST mode faster measurement speed for quick inspection
Sealed USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
Software Updates via web keep your gage current
Screen Capture record and save image into USB flash memory for record keeping and review
Software Solutions for viewing, analyzing & reporting data
