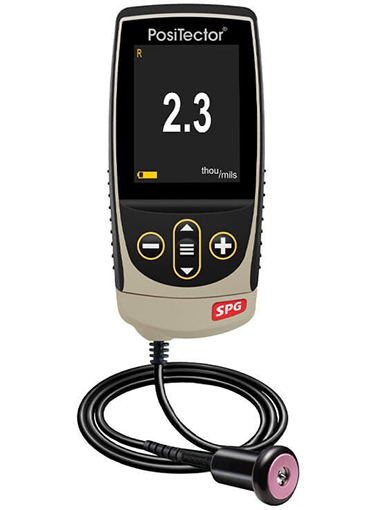

The DeFelsko SPGS1-G PosiTector SPG S1 Standard Surface Profile Gage with PRBSPGS-B Cabled Probe for Blasted Steel, Range: 0 to 500 um (0-20 mils) is a precise, rugged tester designed to measure and record peak to valley surface profile heights on blasted steel.
ASTM D4417-B, AS 3894.5-C (with optional 30° tip angle), U.S. Navy NSI 009-32, SANS 5772 and others
Kit Contents
ALL GAGES COME COMPLETE with glass zero plate, metal shim, protective rubber holster with belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to NIST, USB cable, two (2) year warranty
ASTM D4417-B, AS 3894.5-C (with optional 30° tip angle), U.S. Navy NSI 009-32, SANS 5772 and others
Kit Contents
ALL GAGES COME COMPLETE with glass zero plate, metal shim, protective rubber holster with belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to NIST, USB cable, two (2) year warranty
Product Features
Fast measurement rate of over 50 readings per minute - ideal for quickly and accurately measuring surface profile over large surface areas
Large, easy-to-read, graphics LCD
Enhanced one-handed menu navigation
RESET feature instantly restores factory settings
Solvent, acid, oil, water and dust resistant weatherproof
60 angle tungsten carbide tip for long life and continuous accuracy - field replaceable
Rugged, outdoor/indoor instrument - ideal for field or shop use
Two (2) year warranty on body and probe
Built-in temperature compensation ensures measurement accuracy
Certificate of Calibration showing traceability to NIST included
Glass Zero Plate and metal shim included
Conforms to national and international standards including ISO and ASTM
Universal gage accepts all PosiTector SPG (surface profile), DPM (environmental) and 6000 (coating thickness) probes
30 angle interchangeable probe tip available for special surface profile applications
Selectable display languages
Hi Contrast backlit display for bright or dark environments
Flip display enables right-side-up viewing
Uses alkaline or rechargeable batteries (built-in charger)
Continually displays/updates average, standard deviation, min/max thickness and number of surface profile readings
HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
Every stored measurement is date and time stamped
USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
Multiple measurement download/transfer options
USB mass storage - stored readings and graphs can be accessed using universal PC/ Mac web browsers or file explorers. No software required
PosiTector.net - a free web-based application offering secure storage of thickness readings
PosiSoft Software Compatible - Continue using the familiar legacy software you have used for years. Available as a free download
