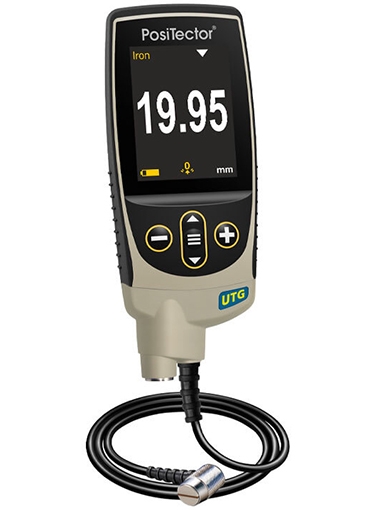

DeFelsko UTGCLF3-G PosiTector UTG CLF3 Advanced Ultrasonic Thickness Gage With PRBUTGCLF-C Low Frequency Cabled Probe Type 2.25 MHz Dual Element, Range: 0.080" to 5.000"
The DeFelsko UTGCLF3-G PosiTector UTG CLF3 Advanced Ultrasonic Thickness Gage With PRBUTGCLF-C Low Frequency Cabled Probe Type 2.25 MHz Dual Element, Range: 0.080" to 5.000" is ideal to measure the wall thickness of materials such as steel, plastic and more using ultrasonic technology. Ideal for measuring the effects of corrosion or erosion on tanks, pipes or any structure where access is limited to one side. Multiple echo (UTG M) Thru-Paint models measure the metal thickness of a painted structure without having to remove the coating.
Large, easy-to-read, graphics LCD Pre-programmed velocities Simply select from a list of common materials or enter your own with ease Smart Couple Eliminates inadvertent decoupling - ideal for analyzing large areas using multiple passes Enhanced one-handed menu navigation Flashing display ideal in a noisy environment RESET feature instantly restores factory settings Braided stainless steel cable and heavy-duty strain reliefs for demanding applications (PosiTector UTG CX only) Impact resistant lens Wear resistant probe tip Shock-absorbing, protective rubber holster with belt clip Two year warranty on gage body AND probe Precision ultrasonic transducers provide fast, accurate readings Certificate of Calibration (Long Form) showing traceability to NIST included Conforms to national and international standards including ASTM E797 Built-in temperature compensation ensures measurement accuracy High contrast LCD with backlit display Single or two point adjustment Inch/mm switchable Selectable display languages Flip display enables right-side-up viewing Uses alkaline or rechargeable batteries (built-in charger) Min Scan - measurement rate of up to 20 readings per second with onscreen min and max for quick inspection over a large area Statistics Mode continually displays/updates average, standard deviation, min/max thickness and number of readings while measuring HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits Sealed USB Port for fast, simple connection to a PC and to supply continuous power. USB cable included Software Updates via web keep your gage current Screen Capture record and save image into USB flash memory for record keeping and review Software Solutions for viewing, analyzing & reporting data Every stored measurement is date and time stamped
Probe Type
2.25 MHz Dual Element
Thru-Paint Capability
No
Measurement Range* - Multiple Echo
NA
Measuring Range
0.080" to 5.000" - 2.00 to 125.00 mm
Accuracy
± 0.001" ± 0.03 mm
UTG CLF3
2.25 MHz Dual Element transducer with cabled probe, designed for measuring attenuative materials such as cast iron
*
Measurement range is for carbon steel and depends upon surface condition, temperature and material
More Information
Product Specifications
Probe Type
2.25 MHz Dual Element
Thru-Paint Capability
No
Measurement Range* - Multiple Echo
NA
Measuring Range
0.080" to 5.000" - 2.00 to 125.00 mm
Accuracy
± 0.001" ± 0.03 mm
UTG CLF3
2.25 MHz Dual Element transducer with cabled probe, designed for measuring attenuative materials such as cast iron
*
Measurement range is for carbon steel and depends upon surface condition, temperature and material
Product Features
Large, easy-to-read, graphics LCD Pre-programmed velocities Simply select from a list of common materials or enter your own with ease Smart Couple Eliminates inadvertent decoupling - ideal for analyzing large areas using multiple passes Enhanced one-handed menu navigation Flashing display ideal in a noisy environment RESET feature instantly restores factory settings Braided stainless steel cable and heavy-duty strain reliefs for demanding applications (PosiTector UTG CX only) Impact resistant lens Wear resistant probe tip Shock-absorbing, protective rubber holster with belt clip Two year warranty on gage body AND probe Precision ultrasonic transducers provide fast, accurate readings Certificate of Calibration (Long Form) showing traceability to NIST included Conforms to national and international standards including ASTM E797 Built-in temperature compensation ensures measurement accuracy High contrast LCD with backlit display Single or two point adjustment Inch/mm switchable Selectable display languages Flip display enables right-side-up viewing Uses alkaline or rechargeable batteries (built-in charger) Min Scan - measurement rate of up to 20 readings per second with onscreen min and max for quick inspection over a large area Statistics Mode continually displays/updates average, standard deviation, min/max thickness and number of readings while measuring HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits Sealed USB Port for fast, simple connection to a PC and to supply continuous power. USB cable included Software Updates via web keep your gage current Screen Capture record and save image into USB flash memory for record keeping and review Software Solutions for viewing, analyzing & reporting data Every stored measurement is date and time stamped
