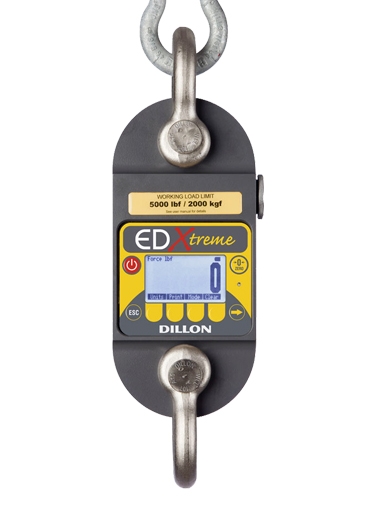

The Dillon AWT05-506315 EDx-10T "Red" EDXtreme Dynamometer with 2 Shackles, 25,000 lbf Capacity is an example of trademark precision and rugged construction of dynanometers. Its highly refined design draws on the inherent strengths of premium-grade materials to achieve a 5:1 minimum factor of safety. While the EDxtreme Dillon Dynamometers may be configured for something as simple as a digital hanging scale, it offers a higher level of intelligence. With user-defined functions and sophisticated communication options, the EDxtreme readily adapts to multi-tasking operations or multi-link systems capable of monitoring a series of critical stress points from a single locations - it is the definition of application versatility. Building a precision instrument that can survive real-world punishment requires masterful engineering. This is where Dillon's experience shines through. The engineers assigned to the EDxtreme drew on a depth of industrial application knowledge and conducted exhaustive materials testing to achieve the highest structural integrity.
Designed to NEMA4X/IP55 Suitable for continuous outdoor use.
Accuracy
0.1% of capacity up to EDx-50T 0.3% of capacity for EDx-75T and above
Repeatability
.1% of capacity up to EDx-50T 0.3% of capacity for EDx-75T and above
Proof load
150% of capacity up to EDx-75T. 110% of capacity EDx-100T and above.
Safe Overload
200% of capacity
Body Protection
Aluminum capacities are anodized. Alloy steel capacities are elctroless-nickel plated.
Bearings
Unmatched repeatability attained by needle bearings in shackle pin holes up to EDx-5T. Shackle pin acts as inner race.
Shackles
Forged industry standadrd anchor shackles. Models up to EDx-5T use precision machined shackle pin. Higher capacities use bar stock pin.
Display
128 x 64 dot-graphic LCD display shows up to 6 digits 1.0" (26 mm) high plus annunciators and softkeys. Digits are .11 inches (3 mm) thick for unmatched readability.
Display Update Rate
1 time per second
Peak Capture Rate
10/100/1,000 Hz
RS-232 communication
Print or extract data easily. Continuous output can drive a scoreboard. Configurable poll character.
Calibration
Traceable to the NIST. Certificate included with curve of readings. Passes only with threee consecutive confirming runs, with all points in specification.
Battery life
Stand alone EDXtreme with no radio and no backlight lasts up to 400+ hours. 150 hours continuous with Radio Link System. Use with two C-Cell alkaline batteries. (When using backlight, battery life will be reduced, depending on intensity.)
Operating Temperature
-4 F to 158 F (-20 to 70 C)
Calibration Certificate
NIST Certified Certificate Included
Number of Links Remote Can Control
Up to 15 addresses
Range
Open-air range up to 600 feet, line-of-sight. Indoor range dependent upon environment with 300 feet common. Low power radio systems are dependent upon interference levels from other radio systems and environmental conditions. Radio devices are not suitable for all applications
FCC Certified
For unlicensed low power devices. No radio licensing or permits required for normal operation.* (In the US and Canada. Check local ordinances in other countries.)
Frequency
ISM 2.4 GHz frequency band operates between 2.4 to 2.4835 GHz
Designed to NEMA4X/IP55 Suitable for continuous outdoor use.
Accuracy
0.1% of capacity up to EDx-50T 0.3% of capacity for EDx-75T and above
Repeatability
.1% of capacity up to EDx-50T 0.3% of capacity for EDx-75T and above
Proof load
150% of capacity up to EDx-75T. 110% of capacity EDx-100T and above.
Safe Overload
200% of capacity
Body Protection
Aluminum capacities are anodized. Alloy steel capacities are elctroless-nickel plated.
Bearings
Unmatched repeatability attained by needle bearings in shackle pin holes up to EDx-5T. Shackle pin acts as inner race.
Shackles
Forged industry standadrd anchor shackles. Models up to EDx-5T use precision machined shackle pin. Higher capacities use bar stock pin.
Display
128 x 64 dot-graphic LCD display shows up to 6 digits 1.0" (26 mm) high plus annunciators and softkeys. Digits are .11 inches (3 mm) thick for unmatched readability.
Display Update Rate
1 time per second
Peak Capture Rate
10/100/1,000 Hz
RS-232 communication
Print or extract data easily. Continuous output can drive a scoreboard. Configurable poll character.
Calibration
Traceable to the NIST. Certificate included with curve of readings. Passes only with threee consecutive confirming runs, with all points in specification.
Battery life
Stand alone EDXtreme with no radio and no backlight lasts up to 400+ hours. 150 hours continuous with Radio Link System. Use with two C-Cell alkaline batteries. (When using backlight, battery life will be reduced, depending on intensity.)
Operating Temperature
-4 F to 158 F (-20 to 70 C)
Calibration Certificate
NIST Certified Certificate Included
Number of Links Remote Can Control
Up to 15 addresses
Range
Open-air range up to 600 feet, line-of-sight. Indoor range dependent upon environment with 300 feet common. Low power radio systems are dependent upon interference levels from other radio systems and environmental conditions. Radio devices are not suitable for all applications
FCC Certified
For unlicensed low power devices. No radio licensing or permits required for normal operation.* (In the US and Canada. Check local ordinances in other countries.)
Frequency
ISM 2.4 GHz frequency band operates between 2.4 to 2.4835 GHz
Output Level
10 mW (10 dBm)
Product Features
Capacities from 2,500-550,000lb (1,000-250,000kg)
Generous shackle openings mate with most hooks and hardware
0.1% accuracy
High specification materials on all load components. Heat treated to tight tolerances
Broadest range of capacities and resolutions are certain to fit your needs
2 Year Warranty
Largest safety factor for overload protection and long life
