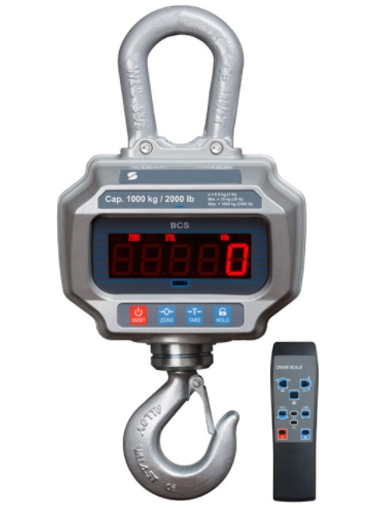

Dillon BCS Digital Crane Scale
The Dillon BCS Digital Crane Scale is a precision scale for a wide range of industrial weighing applications. The BCS is available in 3 ranges with capacities up to 10,000 lb / 5,000 kg. It features a swivel hook for easy and secure connections and an elongated upper shackle with space to accept large hooks. A large 1.4" (35mm) ultra-bright LCD display makes the BCS easy to read from far away. An optional remote control allows the operator to reset and change operating modes adding convenience and safety.
Real-Time and Peak Display Modes Calibration Certificate NOT included Rugged aluminium housing Dual Power, Runs off Internal rechargeable battery or AC power (optional) Large 1.4" (35mm) ultra-bright LCD display Built-in swivel hook with safety latch and elongated upper shackle Auto-Off can be set from 0 to 60 minutes Includes remote control
Accuracy
+/- 0.1% of full scale
Factory Calibration
39° latitude optimized
Dimensions
255 mm (L) x 210 mm (W) x 440 mm (D) 10" L x 8" W x 17" H
Power
Scale
Typical Battery Life
Depending on LED brightness and idle mode setting, battery works from 60 hrs to 200 hrs
Charging Time
Approximately 12 hrs; red LED charging, green finished
Warranty
1 Year
Typical Battery Life
60 hrs to 200 hrs
Charging Time
Approximately 12 hours
Display
35 mm / 1.4" ultra-bright LED
Remote Distance
Maximum 10 m / 32'
Tare Range
Tare Range
Zero Range
4% F.S.
Stable Time
?10 sec
Overload
100% F.S. + 9 divisions
Overload Indication
Internal counter at +9 divisions F.S.
Ultimate Safety Factor
400% F.S.
Safety Load
150% F.S.
Operating Temperature
-10° C to 40° C / 14° F to 104° F
Operating Humidity
20° C ?90%
Shipping Weight
12.65 kg / 27.88 lb
Packaging Dimension
600 mm (L) x 270 mm (W) x 310 mm (H) / 23" L x 10" W x 12" H
Accuracy Class
GB/T 11883-2002 Class III
Agency Approvals
CE, EC Machinery Directive
More Information
Product Specifications
Accuracy
+/- 0.1% of full scale
Factory Calibration
39° latitude optimized
Dimensions
255 mm (L) x 210 mm (W) x 440 mm (D) 10" L x 8" W x 17" H
Power
Scale
Typical Battery Life
Depending on LED brightness and idle mode setting, battery works from 60 hrs to 200 hrs
Charging Time
Approximately 12 hrs; red LED charging, green finished
Warranty
1 Year
Typical Battery Life
60 hrs to 200 hrs
Charging Time
Approximately 12 hours
Display
35 mm / 1.4" ultra-bright LED
Remote Distance
Maximum 10 m / 32'
Tare Range
Tare Range
Zero Range
4% F.S.
Stable Time
?10 sec
Overload
100% F.S. + 9 divisions
Overload Indication
Internal counter at +9 divisions F.S.
Ultimate Safety Factor
400% F.S.
Safety Load
150% F.S.
Operating Temperature
-10° C to 40° C / 14° F to 104° F
Operating Humidity
20° C ?90%
Shipping Weight
12.65 kg / 27.88 lb
Packaging Dimension
600 mm (L) x 270 mm (W) x 310 mm (H) / 23" L x 10" W x 12" H
Accuracy Class
GB/T 11883-2002 Class III
Agency Approvals
CE, EC Machinery Directive
Product Features
Real-Time and Peak Display Modes Calibration Certificate NOT included Rugged aluminium housing Dual Power, Runs off Internal rechargeable battery or AC power (optional) Large 1.4" (35mm) ultra-bright LCD display Built-in swivel hook with safety latch and elongated upper shackle Auto-Off can be set from 0 to 60 minutes Includes remote control
