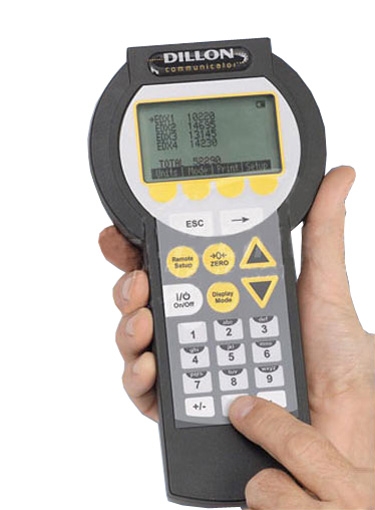

Dillon EDX-COMM-II Remote Communicator for EDXtreme
The Dillon EDX-COMM-II Remote Communicator for EDXtreme is used to remotely view and control one or several EDxtreme instruments simultaneously. It connects by wire to the connector on the back of the EDxtreme. If equipped with radio, the remote cable can be eliminated (radio options must be installed in both the EDxtreme and Communicator). Information is easily sent to computer from the Communicator.
Remote Communicator for EDXtreme Dynamometers Designed to NEMA 3 / IP44 with optional sleeve. Suitable for protected outdoor use. Sealed connectors may be used for serial communications and wired connection to an EDxtreme dynamometer NIST Certified Certificate Included
Enclosure
Designed to NEMA 3 / IP44 with optional sleeve. Suitable for protected outdoor use
Dimensions
9.5 x 5.0 x 2.5 inch (241 x 127 x 64mm).
Accuracy
Not applicable. Only sends and receives digital information
Display
128 x 64 dot-graphic LCD display can show full readings up to 5 instruments
Battery Life
Up to 80 hours continuous radio using (4) AA alkaline batteries
Operating Temperature
-4° F to 158° F (-20° to 70° C)
Connectors
Sealed connectors may be used for serial communications and wired connection to an EDxtreme dynamometer
RS-232 Communication
Print or extract data easily. Continuous output can drive a scoreboard. Configurable poll character.
Shipping Weight
10
Included with Remote;
Carry case and batteries
Shipping Dimensions
18 x 12 x 8 Inches
Accessories
Rubberized case protector sleeve, Remote wall mount bracket. Serial and remote cable assemblies
Approval
CE
More Information
Product Specifications
Enclosure
Designed to NEMA 3 / IP44 with optional sleeve. Suitable for protected outdoor use
Dimensions
9.5 x 5.0 x 2.5 inch (241 x 127 x 64mm).
Accuracy
Not applicable. Only sends and receives digital information
Display
128 x 64 dot-graphic LCD display can show full readings up to 5 instruments
Battery Life
Up to 80 hours continuous radio using (4) AA alkaline batteries
Operating Temperature
-4° F to 158° F (-20° to 70° C)
Connectors
Sealed connectors may be used for serial communications and wired connection to an EDxtreme dynamometer
RS-232 Communication
Print or extract data easily. Continuous output can drive a scoreboard. Configurable poll character.
Shipping Weight
10
Included with Remote;
Carry case and batteries
Shipping Dimensions
18 x 12 x 8 Inches
Accessories
Rubberized case protector sleeve, Remote wall mount bracket. Serial and remote cable assemblies
Approval
CE
Product Features
Remote Communicator for EDXtreme Dynamometers Designed to NEMA 3 / IP44 with optional sleeve. Suitable for protected outdoor use. Sealed connectors may be used for serial communications and wired connection to an EDxtreme dynamometer NIST Certified Certificate Included
