Dillon U-Force Slim-line Mechanical Force Gauge

SKU

ProductID-1472

Grouped product items
Product Name	Qty
Dillon 30354-0017 U-Force Flat Bottom Low Profile Compression Force Measurement - 25lb Capacity (Compression fitting required - Sold separately) $2,015.00
Dillon 30354-0033 U-Force Flat Bottom Low Profile Compression Force Measurement - 100lb Capacity (Compression fitting required - Sold separately) $1,930.00
Dillon 30354-0058 U-Force Flat Bottom Low Profile Compression Force Measurement - 250lb Capacity (Compression fitting required - Sold separately) $1,910.00
Dillon 30482-0020 U-Force Flat Bottom Low Profile Compression Force Measurement - 500lb Capacity (Compression fitting required - Sold separately) $2,345.00
Dillon 30482-0053 U-Force Flat Bottom Low Profile Compression Force Measurement - 1,000lb Capacity (Compression fitting required - Sold separately) $2,135.00
Dillon 30478-0034 U-Force Flat Bottom Low Profile Compression Force Measurement - 5,000lb Capacity (Compression fitting required - Sold separately) $2,965.00
Dillon 30354-0066 U-Force Flat Bottom Low Profile Compression Force Measurement - 10kg Capacity (Compression fitting required - Sold separately) $2,040.00
Dillon 30354-0082 U-Force Flat Bottom Low Profile Compression Force Measurement - 50kg Capacity (Compression fitting required - Sold separately) $1,910.00
Dillon 30354-0090 U-Force Flat Bottom Low Profile Compression Force Measurement - 100kg Capacity (Compression fitting required - Sold separately) $1,965.00
Dillon 30482-0079 U-Force Flat Bottom Low Profile Compression Force Measurement - 500kg Capacity (Compression fitting required - Sold separately) $2,205.00

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

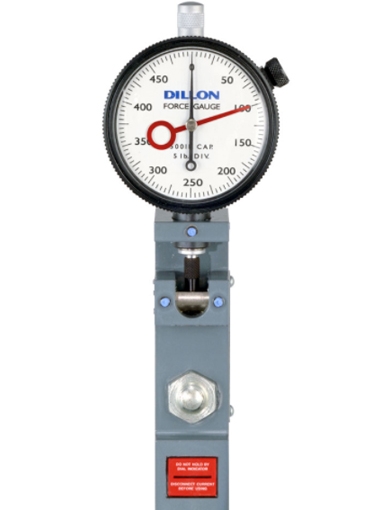

The Dillon U-Force Slim-line Mechanical Force Gauge is an accurate (±1% of full range) mechanical compression measurement instrument. Its slim-line design has repeatedly proven valuable in installations where space is at a premium. The versatility of the Dillon U-Force is demonstrated by the fact that it can be used as a hand-held device, permanently mounted on a flat surface plate, or used in test fixtures. The Dillon U-Force employs a deflection beam machined from aircraft quality alloy steel and heat treated to develop optimum strength and spring characteristics. A precision dial indicator is mounted at the null point of this beam.
