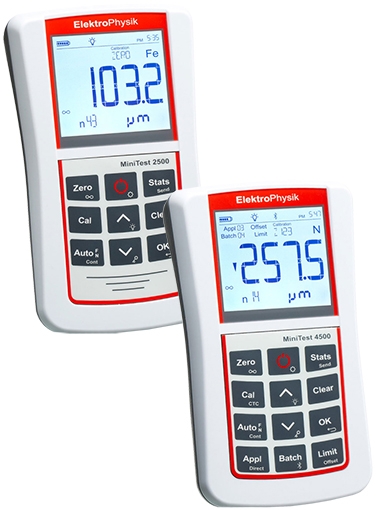

ElektroPhysik 80-144-0000 MiniTest 4500 Coating Thickness Gauge - Probes Sold Separately
The ElektroPhysik 80-144-0000 MiniTest 4500 Coating Thickness Gauge - Probes Sold Separately is the high precision coating thickness gauges compatible with a large range of probes for measuring coatings on ferrous and non-ferrous metals. Different calibration methods and evaluation options for a wide range of tasks in the field of coating measurements.
All functions directly accessible Large selection of interchangeable sensors High-contrast display and illuminated keypad Memory and Statistics Bluetooth and USB Output IP 65 Rated Rugged housing
Memory MiniTest 2500
2,000,000 values stored in 1 batch
Memory MiniTest 4500
2,000,000 values stored in up to 9500 batches
Statistical functions (per batch) MiniTest 2500
kvar, n, max., min.
Statistical functions (per batch) MiniTest 4500
kvar, n, max., min., CP, CPK
Calibration
Factory settings, zero and up to four calibration points
Measuring units
µm, mm, cm, mils, inch
Output MiniTest 2500
USB
Output MiniTest 4500
USB and Bluetooth (RS232 optional)
Power
3x AA batteries or via USB
Norms and standards
DIN EN ISO 1461, 2064, 2178, 2360, 2808, 3882; ISO 19840; ASTM B 244, B 499, D 7091, E376
Display
53 x 46 mm, backlit
Operating temperature
-10 - 60 °C / 14 - 140° F
Storage temperature
-20 - 70 °C / -4 - 158° F
Dimensions
153 mm x 89 mm x 36 mm (6” x 3.5” x 1.4”)
Weight
320 g (0.7 lbs) (gauge incl. batteries), 90 g (0.2 lbs) rubber protection case
Protection class
IP 65

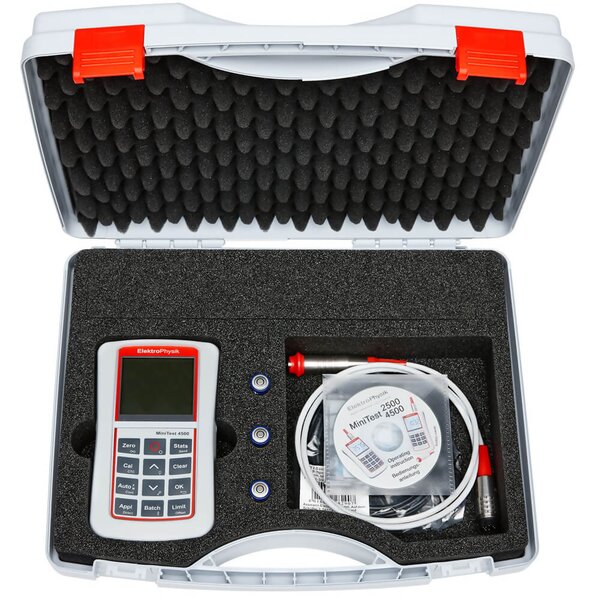

ElektroPhysik MiniTest 2500 or 4500 Coating Thickness Gauges Rubber protection case USB connection cable Instruction Manual Caring Case
More Information
Product Specifications
Memory MiniTest 2500
2,000,000 values stored in 1 batch
Memory MiniTest 4500
2,000,000 values stored in up to 9500 batches
Statistical functions (per batch) MiniTest 2500
kvar, n, max., min.
Statistical functions (per batch) MiniTest 4500
kvar, n, max., min., CP, CPK
Calibration
Factory settings, zero and up to four calibration points
Measuring units
µm, mm, cm, mils, inch
Output MiniTest 2500
USB
Output MiniTest 4500
USB and Bluetooth (RS232 optional)
Power
3x AA batteries or via USB
Norms and standards
DIN EN ISO 1461, 2064, 2178, 2360, 2808, 3882; ISO 19840; ASTM B 244, B 499, D 7091, E376
Display
53 x 46 mm, backlit
Operating temperature
-10 - 60 °C / 14 - 140° F
Storage temperature
-20 - 70 °C / -4 - 158° F
Dimensions
153 mm x 89 mm x 36 mm (6” x 3.5” x 1.4”)
Weight
320 g (0.7 lbs) (gauge incl. batteries), 90 g (0.2 lbs) rubber protection case
Protection class
IP 65
Product Features
All functions directly accessible Large selection of interchangeable sensors High-contrast display and illuminated keypad Memory and Statistics Bluetooth and USB Output IP 65 Rated Rugged housing
