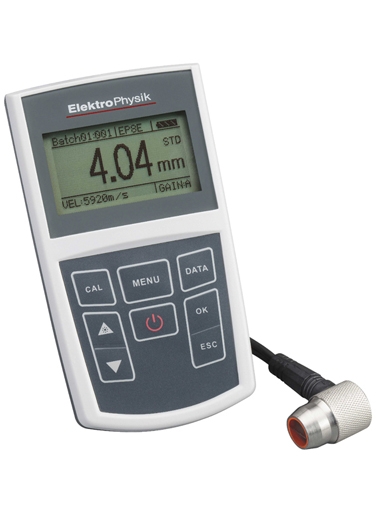

ElektroPhysik 85-804-0600 MiniTest 420 Ultrasonic Thickness Gauge Complete kit including 5 Mhz probe - TRA/005420
The ElektroPhysik 85-804-0600 MiniTest 420 Ultrasonic Thickness Gauge Complete kit including 5 Mhz probe - TRA/005420 is a basic straight forward ultrasonic thickness testing gauge for simple quick measurements. The ElektroPhysik MiniTest 420 Ultrasonic Wall Thickness Gauge incorporates a calibration block for zero adjustments and quick calibration. Sturdy and accurate ultrasonic thickness gauge based on the ultrasonic pulse run-time method.
Includes Factory "Works" Calibration Certificate. NIST Traceable Calibration Certificate optionally available at additional cost Suitable for measurement of various materials including steel, stainless steel, aluminum, glass, plastics (PS/PE) Adjustable units inch/mm Resolution of 0.001" (0.01 mm) Automatic identification of probes Uses Pulse-Echo Principle of Ultrasonics Sensitivity can be set to "Auto" or "Manual" Several Transducers are optionally available including one for High Temperature materials (350 C) Warranty 1-Year Made in Germany
Measuring Range
Pulse Echo
Resolution
0.01mm (0 - 99.9 mm), 0.1(> 100 mm)
Display
128 x 64 pixels with backlight
Velocity Range
0.0492 to .3937 in/?s. 1250 to 10,000 meters/sec
Probe
Standard transducer U5.0
Operation Temperature
-20 to 50°C (-4 to 122°F)
Battery Type
Two AA batteries
Battery Life
more than 80 hours under continuous operation
Weight
approx. 6.70 oz (190 g)
Size
5.1 x 2.9 x 0.94" (130 X 73 X 24 mm)
Accessories Included
U5.0 5 MHz standard transducer, Operating instructions, two 1.5V AA batteries, Plastic carrying case, Coupling liquid (200 ml),
Housing Protection
IP40
More Information
Product Specifications
Measuring Range
Pulse Echo
Resolution
0.01mm (0 - 99.9 mm), 0.1(> 100 mm)
Display
128 x 64 pixels with backlight
Velocity Range
0.0492 to .3937 in/?s. 1250 to 10,000 meters/sec
Probe
Standard transducer U5.0
Operation Temperature
-20 to 50°C (-4 to 122°F)
Battery Type
Two AA batteries
Battery Life
more than 80 hours under continuous operation
Weight
approx. 6.70 oz (190 g)
Size
5.1 x 2.9 x 0.94" (130 X 73 X 24 mm)
Accessories Included
U5.0 5 MHz standard transducer, Operating instructions, two 1.5V AA batteries, Plastic carrying case, Coupling liquid (200 ml),
Housing Protection
IP40
Product Features
Includes Factory "Works" Calibration Certificate. NIST Traceable Calibration Certificate optionally available at additional cost Suitable for measurement of various materials including steel, stainless steel, aluminum, glass, plastics (PS/PE) Adjustable units inch/mm Resolution of 0.001" (0.01 mm) Automatic identification of probes Uses Pulse-Echo Principle of Ultrasonics Sensitivity can be set to "Auto" or "Manual" Several Transducers are optionally available including one for High Temperature materials (350 C) Warranty 1-Year Made in Germany
