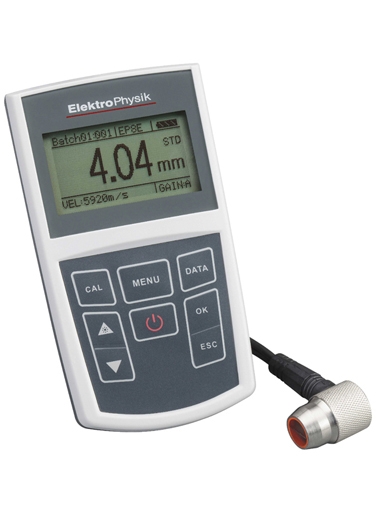

ElektroPhysik MiniTest 430 Ultrasonic Thickness Gauge, Supplied as a complete kit including 5 Mhz probe - TRA/005430
The ElektroPhysik MiniTest 430 Ultrasonic Thickness Gauge, Supplied as a complete kit including 5 Mhz probe - TRA/005430 is a sturdy and accurate ultrasonic thickness gauge based on the ultrasonic pulse run-time method. 6 ultrasonic probes with frequencies ranging between 2 and 10 MHz in different designs offer a broad spectrum of applications and thickness measurements ranging from 0.65 mm to 500 mm. A high temperature ultrasonic probe is also available, designed for measurement of hot materials with temperatures of up to 350 °C.
Includes Factory "Works" Calibration Certificate NIST Traceable Calibration Certificate optionally available at additional cost Suitable for measurement of various materials including steel, stainless steel, aluminum, glass, plastics (PS/PE) Built-in Datalogger with 5000 data values (500 values in 10 batches ) with USB Output Includes "Scan-Mode" to display MIN and MAX values at 10 readings/second Adjustable units inch/mm Resolution of 0.001" (0.01 mm) Automatic identification of probes Automatic Probe Zero function Uses Pulse-Echo Principle of Ultrasonics Sensitivity can be set to "Auto" or "Manual" Several Transducers are optionally available including one for High Temperature materials (350 C) Warranty 1-Year Made in Germany
Measuring range
Pulse Echo
Resolution
0.01mm (0 – 99.9 mm), 0.1(> 100 mm)
Display
128 x 64 pixels with backlight
Velocity Range
0.0492 to .3937 in/?s. 1250 to 10,000 meters/sec preset sound velocity of 9 materials
Measuring mode
Pulse-Echo Standard
Probe
Standard transducer U5.0
Operation Temperature
-20 to 50°C (-4 to 122°F)
Cable
Software and data transmission cable
Battery Type
Two AA batteries
Battery Life
more than 80 hours under continuous operation
Weight
approx. 6.70 oz (190 g)
Size
5.1 x 2.9 x 0.94" (130 X 73 X 24 mm)
Accessories Included
U5.0 5 MHz standard transducer, Operating instructions, two 1.5V AA batteries, Plastic carrying case, Coupling liquid (200 ml), cable
Data storage
10 groups with max. 500 values each
Data interface
USB
Calibration
automatic
Housing Protection
IP40
More Information
Product Specifications
Measuring range
Pulse Echo
Resolution
0.01mm (0 – 99.9 mm), 0.1(> 100 mm)
Display
128 x 64 pixels with backlight
Velocity Range
0.0492 to .3937 in/?s. 1250 to 10,000 meters/sec preset sound velocity of 9 materials
Measuring mode
Pulse-Echo Standard
Probe
Standard transducer U5.0
Operation Temperature
-20 to 50°C (-4 to 122°F)
Cable
Software and data transmission cable
Battery Type
Two AA batteries
Battery Life
more than 80 hours under continuous operation
Weight
approx. 6.70 oz (190 g)
Size
5.1 x 2.9 x 0.94" (130 X 73 X 24 mm)
Accessories Included
U5.0 5 MHz standard transducer, Operating instructions, two 1.5V AA batteries, Plastic carrying case, Coupling liquid (200 ml), cable
Data storage
10 groups with max. 500 values each
Data interface
USB
Calibration
automatic
Housing Protection
IP40
Product Features
Includes Factory "Works" Calibration Certificate NIST Traceable Calibration Certificate optionally available at additional cost Suitable for measurement of various materials including steel, stainless steel, aluminum, glass, plastics (PS/PE) Built-in Datalogger with 5000 data values (500 values in 10 batches ) with USB Output Includes "Scan-Mode" to display MIN and MAX values at 10 readings/second Adjustable units inch/mm Resolution of 0.001" (0.01 mm) Automatic identification of probes Automatic Probe Zero function Uses Pulse-Echo Principle of Ultrasonics Sensitivity can be set to "Auto" or "Manual" Several Transducers are optionally available including one for High Temperature materials (350 C) Warranty 1-Year Made in Germany
