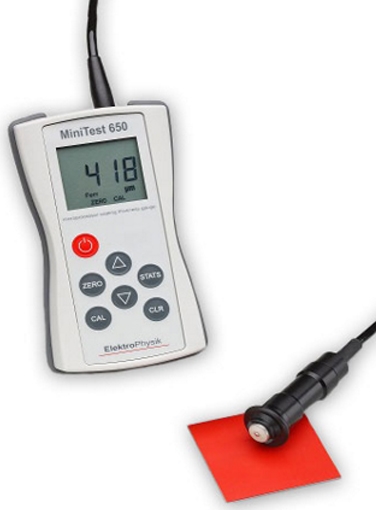

ElektroPhysik MiniTest 650 Coating Thickness Gauge
The ElektroPhysik MiniTest 650 Coating Thickness Gauge is especially designed to work in rough environments as well as on on abrasive surfaces, e.g. shot-blasted steel, plasma spray coated surfaces. The MiniTest 650 is the ideal tool for any measuring task in the finishing industry. The rugged and easy-to-handle thickness gauge combines extended mechanical life on the one hand and high accuracy on the other hand to meet the requirements of any professional user in the shipbuilding, automotive, bridge building, construction or other industry. The battery-operated gauge features a backlit display and a one meter sensor cable. The newly developed one pole sensor is made of a wear and tear resistant carbide material to ensure a virtually unlimited life cycle under normal condition use. An optimal ram- and impact-protection is provided through the rubber rimmed casing. Via a USB interface, the MiniTest 650 can be connected to a PC for on-line measurements or display of the statistics.
Rugged and easy-to-handle coating thickness gauge High repeatability For fast and precise measurements of non-magnetic coatings on steel and insulating coatings on non-ferrous metals Ram- and impact-protected through rubber rimmed casing Sensor with newly developed wear-resistant carbide metal tip Automatic identification of the substrate material External sensor Proven measuring methods USB-interface to transfer measruing data to a PC Statistical evaluation of readings Coating thickness measurement up to 2 or 3 mm Data transfer program Msoft7000 basic edition DIN EN ISO 1461, 2178, 2360, 2808, 3882, ASTM B 244, B 499, D7091, E 376
Measuring Range
Model F (steel) 0 - 3000 ?m / 120 mils Model N (non-ferrous metal 0 - 2000 ?m / 80 mils Model FN (dual sensor) 0 - 2000 ?m / 80 mils
Measuring Uncertainty
± (2 % of reading + 2 ?m) / ± (2 % of reading + 0.08 mils)
Minimum curvature radius convex
5 mm / 0.2“
Minimum curvature radius concave
25 mm / 1“
Minimum measuring area
Ø 20 mm / 0.8“
Minimum base thickness
0.5 mm / 20 mils (F) / 50 ?m / 2 mils (N)
Display
4-digit screen data (11 mm)
Measuring units
?m – mils user selectable
Statistics
Calculated from maximum 9.999 readings, mean value, standard deviation, number of readings, minimum and maximum
Interface
USB
Power supply
3 Micro AAA batteries (for more than 10,000 readings)
Dimensions and weight
Housing
Ambient temperature
Gauge
Warranty
1 Year
MiniTest 650 with probe and three batteries Control standard(s) Calibration standard(s) Operating instructions Soft pouch Data transfer program Msoft7000 basic edition
More Information
Product Specifications
Measuring Range
Model F (steel) 0 - 3000 ?m / 120 mils Model N (non-ferrous metal 0 - 2000 ?m / 80 mils Model FN (dual sensor) 0 - 2000 ?m / 80 mils
Measuring Uncertainty
± (2 % of reading + 2 ?m) / ± (2 % of reading + 0.08 mils)
Minimum curvature radius convex
5 mm / 0.2“
Minimum curvature radius concave
25 mm / 1“
Minimum measuring area
Ø 20 mm / 0.8“
Minimum base thickness
0.5 mm / 20 mils (F) / 50 ?m / 2 mils (N)
Display
4-digit screen data (11 mm)
Measuring units
?m – mils user selectable
Statistics
Calculated from maximum 9.999 readings, mean value, standard deviation, number of readings, minimum and maximum
Interface
USB
Power supply
3 Micro AAA batteries (for more than 10,000 readings)
Dimensions and weight
Housing
Ambient temperature
Gauge
Warranty
1 Year
Product Features
Rugged and easy-to-handle coating thickness gauge High repeatability For fast and precise measurements of non-magnetic coatings on steel and insulating coatings on non-ferrous metals Ram- and impact-protected through rubber rimmed casing Sensor with newly developed wear-resistant carbide metal tip Automatic identification of the substrate material External sensor Proven measuring methods USB-interface to transfer measruing data to a PC Statistical evaluation of readings Coating thickness measurement up to 2 or 3 mm Data transfer program Msoft7000 basic edition DIN EN ISO 1461, 2178, 2360, 2808, 3882, ASTM B 244, B 499, D7091, E 376
