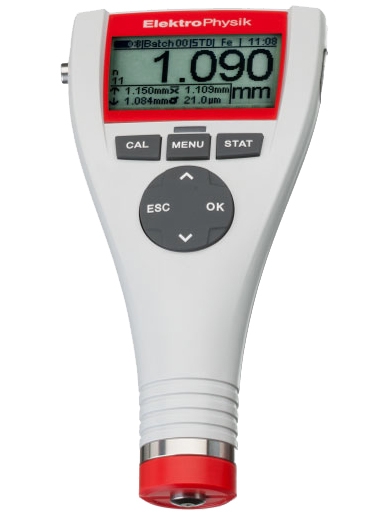

ElektroPhysik MiniTest 725 Coating Thickness Gauge
The ElektroPhysik MiniTest 725 Coating Thickness Gauge is ergonomically designed and its rounded shape allows the MiniTest gauge to fit perfectly into the palm of your hand. It also features a measuring speed setting option that allows adjustment to changing requirements for utmost efficiency and optimum productivity: taking many readings in a short time with medium precision or taking only a few readings with increased accuracy.
- Precision in coating thickness measurement of up to 15 mm / 0.59"
- USB and Bluetooth interfaces for data transfer to PC, mobile devices or printer
- Increased accuracy and reproducibility by sensor-integrated digital signal processing (SIDSP)
- Universal probes with automatic substrate detection for quick measurements on steel and nonferrous metals
- Wear resistant probes with virtually unlimited life
- Optimal temperature compensation
- High precision characteristic curves with up to 50 data points in the factory calibration
- Non-destructive coating thickness measurement
- Non-magnetic coatings like varnishes, enamels, chrome and zinc on ferromagnetic base materials (e.g. steel)
- Insulating coatings like varnishes and anodising aluminium on non-ferrous metals (e.g. aluminium, copper, die-cast zinc)
- Magnetic induction (F-type sensors) according to DIN EN ESO 2808, method 7C
- Eddy current (N-type sensors) according to DIN EN ESO 2808, method 7D
|
 |
| Product Specifications | |
|---|---|
| Product Features |
|
| Downloads | comming soon |
