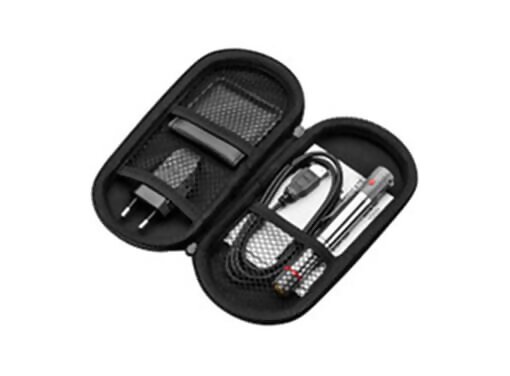

The ElektroPhysik SmarTest Bluetooth Coating Thickness Sensor is an intelligent wireless sensor for non-destructive coating thickness measurement and relays sensor data via Bluetooth to your tablet, smart phone or to the coating thickness gauge MiniTest 745
Powerful and versatile gauge with new ergonomic design making it ideal for on-site testing
User-friendly key-pad layout with menu driven operation
Variable pre-set test voltages specific to material thickness
High voltage probe with equipment-on and pore indicator (red LED)
Light-weight and hand-held test electrodes provide convenient operation
Test method conforms to DIN 55 670
Backlit display to indicate current test voltage, number of pores and material thickness
Residual voltage indicator
Alarm signal when exceeding pore limit setting (Limit)
Power supply: AC operated or battery operated via integrated storage battery (C-cells)
Electrical safety provisions according to VDE 0411, part 1: probe voltage and maximum discharge rate stay below the limit values as specified by the safety standard.
SmarTest F 1.5 0-1.5 mm / 59 mils SmarTest FN 1.5 F-range
Accuracy
± (1 µm + 0.75 % of reading)
Repeatability
± (0.5 µm + 0.5 % of reading)
Measuring principle
SmarTest F 1.5
Signal processing
Sensor-integrated digital 32-bit signal processing (SIDSP®)
Low range resolution
0.05 µm
Smallest curvature radius, convex
1.5 mm
Smallest curvature radius, concave
7.5 mm
Smallest measuring surface
ø 5 mm
Smallest substrate thickness
with Magnetic induction / 0.3 mm (300 µm)
Smallest substrate thickness
with Eddy current / 0.04 mm (40 µm)
Interfaces
Bluetooth 4.0 / Bluetooth Smart, range up to 10 m / Mini-USB connector for charging and power supply, data interface
Operating temperature range
– 10 °C ... + 60 °C
Storage temperature range
– 20 °C ... + 70 °C
Power supply
LiFePO4 battery / operating time approx. 8 hrs continuous operation
Dimensions / weight
ø 16 x 125 mm / 60 g
Norms and standards
DIN EN ISO 1461, 2064, 2178, 2360, 2808, 3882, ASTM B244, B499, D7091, E376
Operation system
as of Android 4.1, iOS
Measuring units
Metric / Mils switchable
Calibration modi
Factory calibration, zero point and 2-point calibration
Statistics
Number of measuring values, minimum, maximum, mean value, standard deviation
Storage of measured values
Storage of measured values in the CSV file format
Product Features
Powerful and versatile gauge with new ergonomic design making it ideal for on-site testing
User-friendly key-pad layout with menu driven operation
Variable pre-set test voltages specific to material thickness
High voltage probe with equipment-on and pore indicator (red LED)
Light-weight and hand-held test electrodes provide convenient operation
Test method conforms to DIN 55 670
Backlit display to indicate current test voltage, number of pores and material thickness
Residual voltage indicator
Alarm signal when exceeding pore limit setting (Limit)
Power supply: AC operated or battery operated via integrated storage battery (C-cells)
Electrical safety provisions according to VDE 0411, part 1: probe voltage and maximum discharge rate stay below the limit values as specified by the safety standard.
