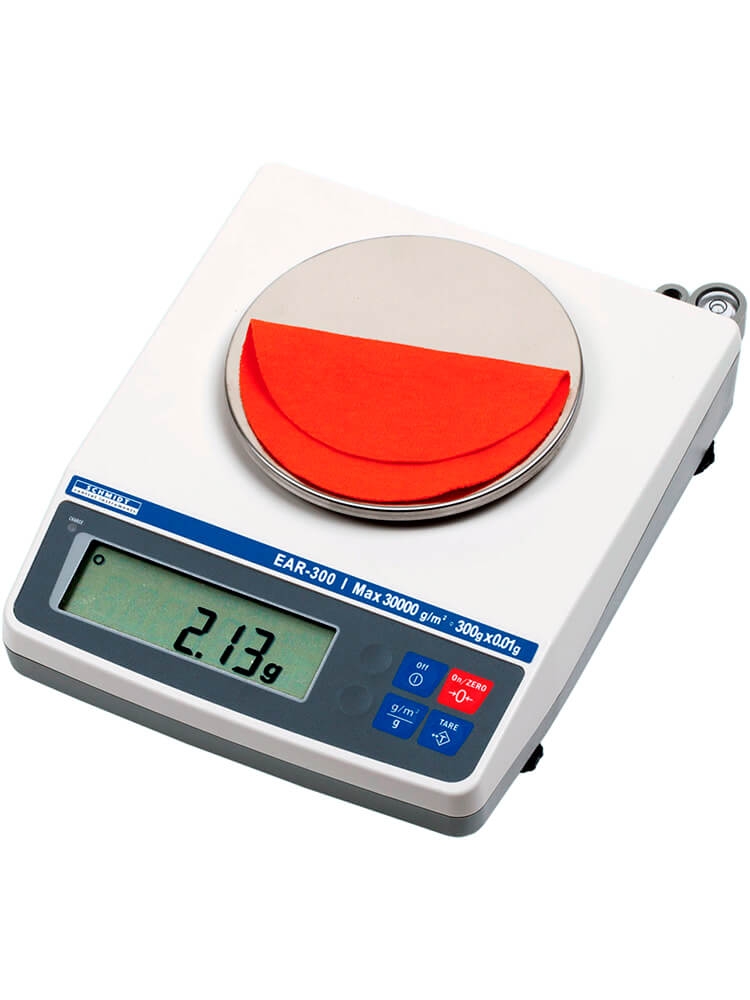

Hans-Schmidt EAR-300 Area Weight Balance, 30000 g/m² or 300 g
The Hans-Schmidt EAR-300 Area Weight Balance, 30000 g/m² or 300 g is ideal to determine the gsm substance or determinate weight in grams of textilies as woven fabrics, fabrics, fleece, paper etc.
Automatic zero tracking and tare function Powered by supplied AC adapter or integrated rechargeable battery Supplied with calibration weight for recalibration Built in calibration routine
Capacity
30000 g/m² Area weight mode 300 g Weight mode
Resolution
1 g Area weight mode (g/m²) 0.01 g Weight mode
Sample Size
100 cm²
Power Supply
DC 9 V - 500 mA, accumulator (12 hr continuous use, recharge time 12 hr)
AC Adapter
100 – 240 V AC
Platform size Ø
120 mm
Temperature range
50 - 113 °F (10 - 45 °C)
Weight, net (gross)
Approx. 1700 g (2700 g)
Dimensions
211x 185x 59mm (LxWxH)
More Information
Product Specifications
Capacity
30000 g/m² Area weight mode 300 g Weight mode
Resolution
1 g Area weight mode (g/m²) 0.01 g Weight mode
Sample Size
100 cm²
Power Supply
DC 9 V - 500 mA, accumulator (12 hr continuous use, recharge time 12 hr)
AC Adapter
100 – 240 V AC
Platform size Ø
120 mm
Temperature range
50 - 113 °F (10 - 45 °C)
Weight, net (gross)
Approx. 1700 g (2700 g)
Dimensions
211x 185x 59mm (LxWxH)
Product Features
Automatic zero tracking and tare function Powered by supplied AC adapter or integrated rechargeable battery Supplied with calibration weight for recalibration Built in calibration routine
