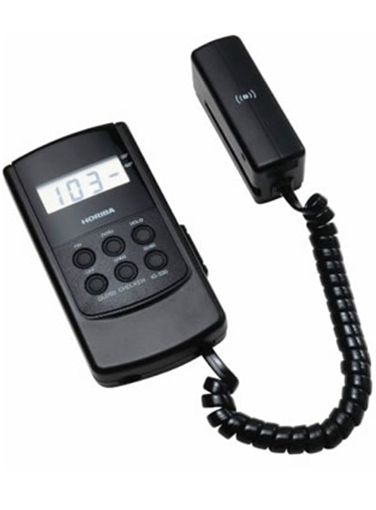

Horiba IG-410 # 3200190929 Dual Range Gloss Meter / Checker
The Horiba IG-410 # 3200190929 Dual Range Gloss Meter / Checker is used to measure ultra high gloss surfaces such as polished metal. The meter has ten times greater measurement range than the conventional model. Even mirror finishes can be measured too. Weighing in at only 350g (1.3 lbs), this battery operated instrument is designed to be portable. Fast and reliable measurement by simple one-touch operation. LED light sources give
Latest model Gloss Checker now checks Ultra high gloss surface finishes Compact, lightweight and detachable probe design Dual range extends measurement resolution in the low gloss range
Measuring system
60°
Measuring area
3 x 6mm oval
Light source (Service life)
LED <890nm> (Indefinite)
Detector
SPD <890nm> (Silicon photodiode)
Measuring range (resolution)
range1
Repeatability
±1% F.S.
Power source (Battery life)
R6 (AA) Alkaline x 4 (200 hours or more at continuous operation)
Ambient temperature range
10-40?
Dimensions
Main body
Mass
Approx. 350g (including battery)
Additional functions
Automatic calibration Automatic power cut-off Overrange display Display hold
Accessories
Standard plate for range 100, 1000 AA battery (LRb) Instruction Manual Lense cloth
More Information
Product Specifications
Measuring system
60°
Measuring area
3 x 6mm oval
Light source (Service life)
LED <890nm> (Indefinite)
Detector
SPD <890nm> (Silicon photodiode)
Measuring range (resolution)
range1
Repeatability
±1% F.S.
Power source (Battery life)
R6 (AA) Alkaline x 4 (200 hours or more at continuous operation)
Ambient temperature range
10-40?
Dimensions
Main body
Mass
Approx. 350g (including battery)
Additional functions
Automatic calibration Automatic power cut-off Overrange display Display hold
Accessories
Standard plate for range 100, 1000 AA battery (LRb) Instruction Manual Lense cloth
Product Features
Latest model Gloss Checker now checks Ultra high gloss surface finishes Compact, lightweight and detachable probe design Dual range extends measurement resolution in the low gloss range
Downloads
