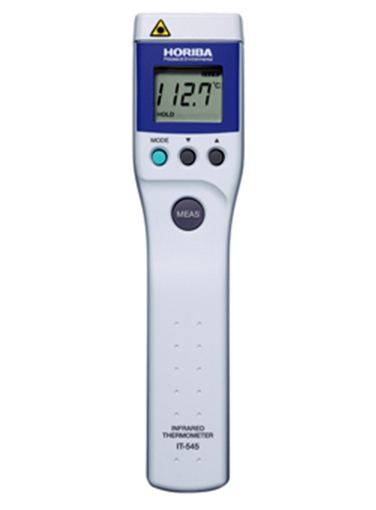

Horiba IT-545 Series High-accuracy Infrared Thermometers
The Horiba IT-545 Series High-accuracy Infrared Thermometers is a high accuracy , thermal-radiation-type thermometer that uses a point marker to clearly designate the measurement location. In addition to being very portable, The Horiba IT-545 Series High-accuracy Infrared Thermometers is easy to use, and is equipped with a range of advanced features that provide a high level of functionality. It is ideal for remote temperature measurement in dangerous applications such as monitoring abnormal heat generation in voltage transformer equipment, and for quick, accurate and hygienic monitoring of the storage temperature of foodstuffs. The twin-beam laser marker provides clear target designation, and the operator is immediately notified of temperature abnormalities by an alarm and flashing of the marker.
Non-Contact High-accuracy Infrared Thermometer High-accuracy (+/-1C), high repeatability (+/-0.3C), and fast response (within 0.8 sec, 95%) Easy-to-carry, compact and lightweight design Quick, accurate readings, even under rapidly changing ambient temperatures minimizing temperature drift Wide measurement area Abnormal temperature warning by audio alarm and flashing marker*Only for models designated IT-545NH and IT-545
Models
Narrow-focus model
Measurement wavelength
8 to 14?m
Measurement temp. range*1
IT-545NH
Display resolution
0.1? for 0.0 to 199.9? 1? for other than above
Accuracy*2 -50 to -0? 0.0 to 199.9? 200 to 500? 501 to 1000?
±(10% of reading -1.5)? ±1.0? ±(0.5% of reading +0.5)? ±(0.5% of reading +0.5)? [Only for IT-545NH]
Repeatability -50 to -0? 0.0 to 199.9? 200 to 500? 501 to 1000?
±1? ±0.3? ±1v ±1? [Only for IT-545NH]
Response time
Within 0.8 sec (95%)
Measuring diameter
IT-545NH
Sight
IT-545NH
Operating temp. & humidity
0 to 50?, 35 to 85% RH, no condensation
Dimensions / Mass
40(W) x 170(L) x 36(H) mm / Approx. 140 g (batteries included)
*1
Fahrenheit and Celsius displays are available for the Americas.
*2
Temp. 18 to 28?, Humidity 55%RH, Emissivity (?)=1.00
*3
DS = Distance to spot size
More Information
Product Specifications
Models
Narrow-focus model
Measurement wavelength
8 to 14?m
Measurement temp. range*1
IT-545NH
Display resolution
0.1? for 0.0 to 199.9? 1? for other than above
Accuracy*2 -50 to -0? 0.0 to 199.9? 200 to 500? 501 to 1000?
±(10% of reading -1.5)? ±1.0? ±(0.5% of reading +0.5)? ±(0.5% of reading +0.5)? [Only for IT-545NH]
Repeatability -50 to -0? 0.0 to 199.9? 200 to 500? 501 to 1000?
±1? ±0.3? ±1v ±1? [Only for IT-545NH]
Response time
Within 0.8 sec (95%)
Measuring diameter
IT-545NH
Sight
IT-545NH
Operating temp. & humidity
0 to 50?, 35 to 85% RH, no condensation
Dimensions / Mass
40(W) x 170(L) x 36(H) mm / Approx. 140 g (batteries included)
*1
Fahrenheit and Celsius displays are available for the Americas.
*2
Temp. 18 to 28?, Humidity 55%RH, Emissivity (?)=1.00
*3
DS = Distance to spot size
Product Features
Non-Contact High-accuracy Infrared Thermometer High-accuracy (+/-1C), high repeatability (+/-0.3C), and fast response (within 0.8 sec, 95%) Easy-to-carry, compact and lightweight design Quick, accurate readings, even under rapidly changing ambient temperatures minimizing temperature drift Wide measurement area Abnormal temperature warning by audio alarm and flashing marker*Only for models designated IT-545NH and IT-545
