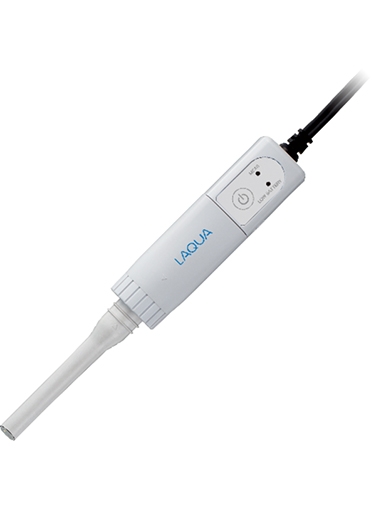

Horiba Laqua 0040N-10D ISFET pH Electrode, # 3200862858
The Horiba Laqua 0040N-10D ISFET pH Electrode, # 3200862858 is waterproof. The Flat ISFET pH Electrode 0040-10D p/n 3200367925 / 3200367925 uses a microchip sensor with a flat tip to measure the pH of surfaces.
pH measurement can be perfomed on a single drop of liquid sample or moist surface of solid or semi-solid sample. Semiconductor based sensor eliminates concern that the electrode will get damaged. It will not crack or break like conventional glass electrodes. Can be stored dry Waterproof Replaceable sensor (Model 0141) Environments where glass material cannot be used. pH measurement of gelatinous materials in shallow containers (e.g., nutrient agar in petri dishes) Surface measurement of skin, meat, cloth and paper. If solid or semi-solid sample has minute amount of moisture, wet the surface with pure water prior to measurement. Clean with neutral detergent and warm water after measuring oily samples.
pH Range
pH Range
Temperature Range
0 to 60 °C
Liquid Junction
Porous sintered polyethylene
Temperature sensor
Integrated
Cable Length
1m
Connectors
BNC, phono jack
Overall Length
190.6mm
Diameter
16mm
More Information
Product Specifications
pH Range
pH Range
Temperature Range
0 to 60 °C
Liquid Junction
Porous sintered polyethylene
Temperature sensor
Integrated
Cable Length
1m
Connectors
BNC, phono jack
Overall Length
190.6mm
Diameter
16mm
Product Features
pH measurement can be perfomed on a single drop of liquid sample or moist surface of solid or semi-solid sample. Semiconductor based sensor eliminates concern that the electrode will get damaged. It will not crack or break like conventional glass electrodes. Can be stored dry Waterproof Replaceable sensor (Model 0141) Environments where glass material cannot be used. pH measurement of gelatinous materials in shallow containers (e.g., nutrient agar in petri dishes) Surface measurement of skin, meat, cloth and paper. If solid or semi-solid sample has minute amount of moisture, wet the surface with pure water prior to measurement. Clean with neutral detergent and warm water after measuring oily samples.
