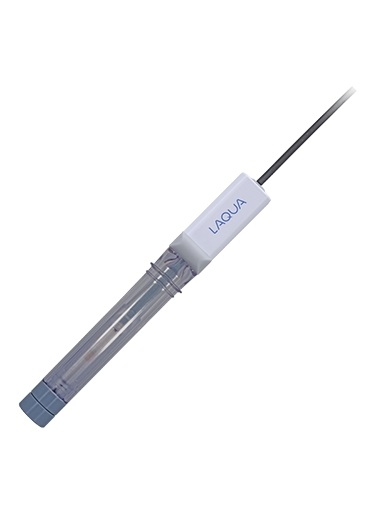

Horiba Laqua 5002S-10C Ammonia Ion Electrode (Combination), # 3200698386
The Horiba Laqua 5002S-10C Ammonia Ion Electrode (Combination), # 3200698386 is a Ion Selective Electrode - the reference electrode and ion sensing electrode are built in one body. HORIBA's superior electrode technology has produced unparalleled tough pH glass bulbs and unique flat sensors. Electrodes have different designs to cater a wide range of applications - from pure water to complex samples.
Package Contents 3 pcs. Membrane Caps 1000 mg/L Ammonium Ion Standard Solution (50ml) 100 mg/L Ammonium Ion Standard Solution (50ml) Ammonia Electrode Filling Solution (50ml) Syringe Dropper Manual
Measurement Range
0.01 - 18000 mg/L NH4+ | 5 x 10-7 to 1 mol/L NH4+
Temperature Range
0 - 50 ºC
pH Range
? pH 12
Accuracy
±2%
Internal Electrode
Ag/AgCl
Internal Solution
0.1 mol/L NH4Cl
Liquid Junction
Movable sleeve
Connector & Cable Length
BNC, 1m
Dimensions
161mm (length), 15mm (diameter)
Wetted Part Materials
PTFE, PVC, PSU
Slope
-54 to -62 mV/decade
NH3 Electrode Membrane Caps
Ammonia Electrode Tips
500-NH3-IFS
Ammonia Electrode Filling Solution (500ml)
500-NH4-SL
100 mg/L Ammonium Ion Standard Solution (500ml)
500-NH4-SH
1000 mg/L Ammonium Ion Standard Solution (500ml)
500-NH3-ISA
Ammonia Ionic Strength Adjustor (500ml)
More Information
Product Specifications
Measurement Range
0.01 - 18000 mg/L NH4+ | 5 x 10-7 to 1 mol/L NH4+
Temperature Range
0 - 50 ºC
pH Range
? pH 12
Accuracy
±2%
Internal Electrode
Ag/AgCl
Internal Solution
0.1 mol/L NH4Cl
Liquid Junction
Movable sleeve
Connector & Cable Length
BNC, 1m
Dimensions
161mm (length), 15mm (diameter)
Wetted Part Materials
PTFE, PVC, PSU
Slope
-54 to -62 mV/decade
NH3 Electrode Membrane Caps
Ammonia Electrode Tips
500-NH3-IFS
Ammonia Electrode Filling Solution (500ml)
500-NH4-SL
100 mg/L Ammonium Ion Standard Solution (500ml)
500-NH4-SH
1000 mg/L Ammonium Ion Standard Solution (500ml)
500-NH3-ISA
Ammonia Ionic Strength Adjustor (500ml)
Product Features
Package Contents 3 pcs. Membrane Caps 1000 mg/L Ammonium Ion Standard Solution (50ml) 100 mg/L Ammonium Ion Standard Solution (50ml) Ammonia Electrode Filling Solution (50ml) Syringe Dropper Manual
