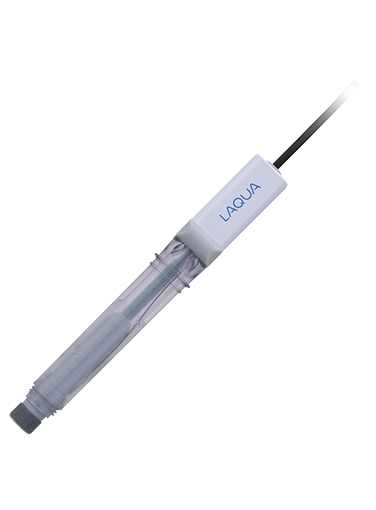

Horiba Laqua 6560S-10C Chloride Ion Electrode (Combination), # 3200697407
The Horiba Laqua 6560S-10C Chloride Ion Electrode (Combination), # 3200697407 is an Ion Selective Electrode - the reference electrode and ion sensing electrode are built in one body. HORIBA's superior electrode technology has produced unparalleled tough pH glass bulbs and unique flat sensors. Electrodes have different designs to cater a wide range of applications - from pure water to complex samples.
Package Contents Chloride Ion Electrode Tip 1000 mg/L Chloride Ion Standard Solution (50ml) 100 mg/L Chloride Ion Standard Solution (50ml) Chloride Ionic Strength Adjustor (50ml) Chloride Electrode Filling Solution (50ml) Syringe Dropper Protective Pipe Water-resistant abrasive sheet Manual
Measurement Range
0.35 - 35,000 mg/L Cl- | 1 x 10-5 - 1 mol/L Cl-
Temperature Range
0 - 50 ºC
pH Range
pH 3 - 11 (350 mg/L Cl-)
Accuracy
± 2%
Internal Electrode
Ag/AgCl
Internal Solution
1 mol/L KNO3
Liquid Junction
Movable sleeve
Connector & Cable Length
BNC, 1m
Dimensions
150mm (length), 16.5mm (diameter)
Wetted Part Materials
PVC, PSU, AgCl
Slope
-53 to -62 mV/decade
Selection Coefficient
S2O32-, S2-, I-, Ag+, Hg2+ = Not acceptable | SCN- = 0.3, MnO4- = 0.1, Br- = 0.03 | NO3-, F-, HCO3-, SO42-, PO42-= 1000
Accessories and Solutions
Accessories and Solutions
7660S
Chloride Ion Electrode Tip
500-CL-IFS
Chloride Ion Electrode Filling Solution (500ml)
500-CL-SL
100 mg/L Chloride Ion Standard Solution (500ml)
500-CL-SH
1000 mg/L Chloride Ion Standard Solution (500ml)
500-CL-ISA
Chloride Ionic Strength Adjustor (500ml)
More Information
Product Specifications
Measurement Range
0.35 - 35,000 mg/L Cl- | 1 x 10-5 - 1 mol/L Cl-
Temperature Range
0 - 50 ºC
pH Range
pH 3 - 11 (350 mg/L Cl-)
Accuracy
± 2%
Internal Electrode
Ag/AgCl
Internal Solution
1 mol/L KNO3
Liquid Junction
Movable sleeve
Connector & Cable Length
BNC, 1m
Dimensions
150mm (length), 16.5mm (diameter)
Wetted Part Materials
PVC, PSU, AgCl
Slope
-53 to -62 mV/decade
Selection Coefficient
S2O32-, S2-, I-, Ag+, Hg2+ = Not acceptable | SCN- = 0.3, MnO4- = 0.1, Br- = 0.03 | NO3-, F-, HCO3-, SO42-, PO42-= 1000
Accessories and Solutions
Accessories and Solutions
7660S
Chloride Ion Electrode Tip
500-CL-IFS
Chloride Ion Electrode Filling Solution (500ml)
500-CL-SL
100 mg/L Chloride Ion Standard Solution (500ml)
500-CL-SH
1000 mg/L Chloride Ion Standard Solution (500ml)
500-CL-ISA
Chloride Ionic Strength Adjustor (500ml)
Product Features
Package Contents Chloride Ion Electrode Tip 1000 mg/L Chloride Ion Standard Solution (50ml) 100 mg/L Chloride Ion Standard Solution (50ml) Chloride Ionic Strength Adjustor (50ml) Chloride Electrode Filling Solution (50ml) Syringe Dropper Protective Pipe Water-resistant abrasive sheet Manual
Downloads
