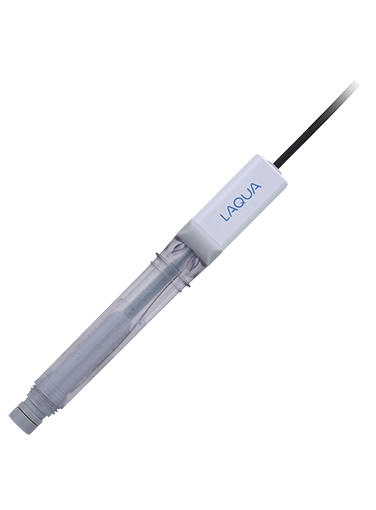

Horiba Laqua 6561S-10C Fluoride Ion Electrode (Combination), # 3200693774
The Horiba Laqua 6561S-10C Fluoride Ion Electrode (Combination), # 3200693774 is an Ion Selective Electrode - the reference electrode and ion sensing electrode are built in one body. HORIBA's superior electrode technology has produced unparalleled tough pH glass bulbs and unique flat sensors. Electrodes have different designs to cater a wide range of applications - from pure water to complex samples.
Package Contents Fluoride Ion Electrode Tip 1000 mg/L Fluoride Ion Standard Solution (50ml) 100 mg/L Fluoride Ion Standard Solution (50ml) Fluoride Ionic Strength Adjustor (50ml) Fluoride Ion Electrode Filling Solution (50ml) Syringe Dropper Protective Pipe Manual
Measurement Range
0.02 - 19,000 mg/L F-
Temperature Range
0 - 50 ºC
pH Range
pH 5 - 8 (0.1 - 1000 mg/L F-)
Accuracy
± 2%
Internal Electrode
Ag/AgCl
Internal Solution
3.3 mol/L KCl
Liquid Junction
Movable sleeve
Connector & Cable Length
BNC, 1m
Dimensions
150mm (length), 16.5mm (diameter)
Wetted Part Materials
LaF3, PSU
Slope
-53 to-62 mV/decade
Selection Coefficient
Possible interference when multiply-charged ion (e.g., Al3+, Fe3+) coexisted and foamed the complex
Accessories and Solutions
Accessories and Solutions
7661S
Fluoride Ion Electrode Tip
500-F-IFS
Fluoride Ion Electrode Filling Solution (500ml)
500-F-SL
100 mg/L Fluoride Ion Standard Solution (500ml)
500-F-SH
1000 mg/L Fluoride Ion Standard Solution (500ml)
500-F-TISAB
Fluoride Ionic Strength Adjustor (500ml)
More Information
Product Specifications
Measurement Range
0.02 - 19,000 mg/L F-
Temperature Range
0 - 50 ºC
pH Range
pH 5 - 8 (0.1 - 1000 mg/L F-)
Accuracy
± 2%
Internal Electrode
Ag/AgCl
Internal Solution
3.3 mol/L KCl
Liquid Junction
Movable sleeve
Connector & Cable Length
BNC, 1m
Dimensions
150mm (length), 16.5mm (diameter)
Wetted Part Materials
LaF3, PSU
Slope
-53 to-62 mV/decade
Selection Coefficient
Possible interference when multiply-charged ion (e.g., Al3+, Fe3+) coexisted and foamed the complex
Accessories and Solutions
Accessories and Solutions
7661S
Fluoride Ion Electrode Tip
500-F-IFS
Fluoride Ion Electrode Filling Solution (500ml)
500-F-SL
100 mg/L Fluoride Ion Standard Solution (500ml)
500-F-SH
1000 mg/L Fluoride Ion Standard Solution (500ml)
500-F-TISAB
Fluoride Ionic Strength Adjustor (500ml)
Product Features
Package Contents Fluoride Ion Electrode Tip 1000 mg/L Fluoride Ion Standard Solution (50ml) 100 mg/L Fluoride Ion Standard Solution (50ml) Fluoride Ionic Strength Adjustor (50ml) Fluoride Ion Electrode Filling Solution (50ml) Syringe Dropper Protective Pipe Manual
