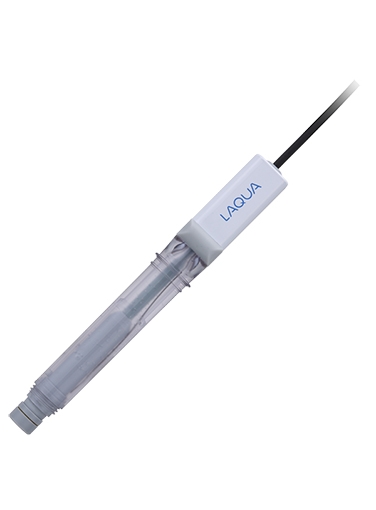

Horiba Laqua 6581S-10C Nitrate Ion Electrode (Combination), # 3200697408
The Horiba Laqua 6581S-10C Nitrate Ion Electrode (Combination), # 3200697408 is an Ion Selective Electrode - the reference electrode and ion sensing electrode are built in one body. HORIBA's superior electrode technology has produced unparalleled tough pH glass bulbs and unique flat sensors. Electrodes have different designs to cater a wide range of applications - from pure water to complex samples.
Package Contents 2 pcs Nitrate Ion Electrode Tips 1000 mg/L Nitrate Ion Standard Solution (50ml) 100 mg/L Nitrate Ion Standard Solution (50ml) Nitrate Ionic Strength Adjustor (50ml) Nitrate Ion Electrode Filling Solution (50ml) Syringe Dropper Protective Pipe Manual
Measurement Range
0.62 - 62,000 mg/L NO3- 1 x 10-5 - 1 mol/L NO3-
Temperature Range
0 - 50 ºC
pH Range
pH 3 - 7 (62 mg/L NO3-)
Accuracy
± 2%
Internal Electrode
Ag/AgCl
Internal Solution
2 mol/L (NH4)2SO4
Liquid Junction
Liquid Junction
Connector & Cable Length
BNC, 1m
Dimensions
150mm (length), 16.5mm (diameter)
Wetted Part Materials
PVC, PSU
Slope
-53 to-62 mV/decade
Selection Coefficient
ClO4-, I- = Not acceptable Br- = 2, NO2- = 3, Cl- = 300 HCO3-, H2PO4-, SO42- = over 1000
7681S
Nitrate Ion Electrode Tip
500-NO3-IFS
Nitrate Ion Electrode Filling Solution (500ml)
500-NO3-SL
100 mg/L Nitrate Ion Standard Solution (500ml)
500-NO3-SH
1000 mg/L Nitrate Ion Standard Solution (500ml)
500-NO3-ISA
Nitrate Ionic Strength Adjustor (500ml)
More Information
Product Specifications
Measurement Range
0.62 - 62,000 mg/L NO3- 1 x 10-5 - 1 mol/L NO3-
Temperature Range
0 - 50 ºC
pH Range
pH 3 - 7 (62 mg/L NO3-)
Accuracy
± 2%
Internal Electrode
Ag/AgCl
Internal Solution
2 mol/L (NH4)2SO4
Liquid Junction
Liquid Junction
Connector & Cable Length
BNC, 1m
Dimensions
150mm (length), 16.5mm (diameter)
Wetted Part Materials
PVC, PSU
Slope
-53 to-62 mV/decade
Selection Coefficient
ClO4-, I- = Not acceptable Br- = 2, NO2- = 3, Cl- = 300 HCO3-, H2PO4-, SO42- = over 1000
7681S
Nitrate Ion Electrode Tip
500-NO3-IFS
Nitrate Ion Electrode Filling Solution (500ml)
500-NO3-SL
100 mg/L Nitrate Ion Standard Solution (500ml)
500-NO3-SH
1000 mg/L Nitrate Ion Standard Solution (500ml)
500-NO3-ISA
Nitrate Ionic Strength Adjustor (500ml)
Product Features
Package Contents 2 pcs Nitrate Ion Electrode Tips 1000 mg/L Nitrate Ion Standard Solution (50ml) 100 mg/L Nitrate Ion Standard Solution (50ml) Nitrate Ionic Strength Adjustor (50ml) Nitrate Ion Electrode Filling Solution (50ml) Syringe Dropper Protective Pipe Manual
