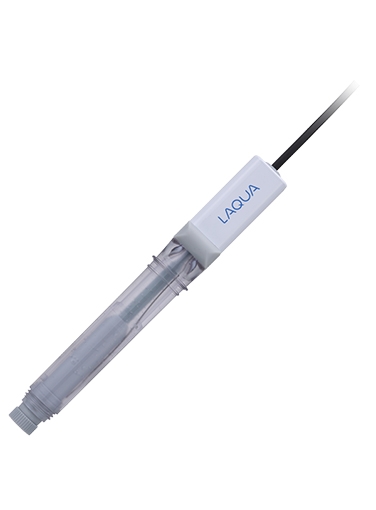

Horiba Laqua 6583S-10C Combination Calcium Ion Electrode, 3200697410
The Horiba Laqua 6583S-10C Combination Calcium Ion Electrode, 3200697410 is an Ion Selective Electrode - the reference electrode and ion sensing electrode are built in one body. HORIBA's superior electrode technology has produced unparalleled tough pH glass bulbs and unique flat sensors. Electrodes have different designs to cater a wide range of applications - from pure water to complex samples.
Package Contents 2 pcs. Calcium Ion Electrode Tips 1000 mg/L Calcium Ion Standard Solution (50ml) 100 mg/L Calcium Ion Standard Solution (50ml) Calcium Ionic Strength Adjustor (50ml) Calcium Electrode Filling Solution (50ml) Syringe Dropper Protective Pipe Manual
Measurement Range
0.4 - 40,080 mg/L Ca2+ | 1 x 10-5 - 1 mol/L Ca2+
Temperature Range
0 - 50 ºC
pH Range
pH 5 - 11 (4.0 mg/L Ca2+)
Accuracy
± 4%
Internal Electrode
Ag/AgCl
Internal Solution
3 mol/L NH4Cl
Liquid Junction
Movable sleeve
Connector & Cable Length
BNC, 1m
Dimensions
150mm (length), 16.5mm (diameter)
Wetted Part Materials
PVC, PSU
Slope
25 - 32 mV/decade
Selection Coefficient
Fe3+ = 0.1, Fe2+, Zn2+= 1, Sr2+ = 50 | Ni2+, Cu2+ = 70, Co2+ = 350 | Mn2+ = 500, Mg2+ = 1,000 | Na+, K+, Ba2+, NH4+ = over 1000
Accessories and Solutions
Accessories and Solutions
7683S
Calcium Ion Electrode Tip
500-CA-IFS
Calcium Ion Electrode Filling Solution (500ml)
500-CA-SL
100 mg/L Calcium Ion Standard Solution (500ml)
500-CA-SH
1000 mg/L Calcium Ion Standard Solution (500ml)
500-CA-ISA
Calcium Ionic Strength Adjustor (500ml)
More Information
Product Specifications
Measurement Range
0.4 - 40,080 mg/L Ca2+ | 1 x 10-5 - 1 mol/L Ca2+
Temperature Range
0 - 50 ºC
pH Range
pH 5 - 11 (4.0 mg/L Ca2+)
Accuracy
± 4%
Internal Electrode
Ag/AgCl
Internal Solution
3 mol/L NH4Cl
Liquid Junction
Movable sleeve
Connector & Cable Length
BNC, 1m
Dimensions
150mm (length), 16.5mm (diameter)
Wetted Part Materials
PVC, PSU
Slope
25 - 32 mV/decade
Selection Coefficient
Fe3+ = 0.1, Fe2+, Zn2+= 1, Sr2+ = 50 | Ni2+, Cu2+ = 70, Co2+ = 350 | Mn2+ = 500, Mg2+ = 1,000 | Na+, K+, Ba2+, NH4+ = over 1000
Accessories and Solutions
Accessories and Solutions
7683S
Calcium Ion Electrode Tip
500-CA-IFS
Calcium Ion Electrode Filling Solution (500ml)
500-CA-SL
100 mg/L Calcium Ion Standard Solution (500ml)
500-CA-SH
1000 mg/L Calcium Ion Standard Solution (500ml)
500-CA-ISA
Calcium Ionic Strength Adjustor (500ml)
Product Features
Package Contents 2 pcs. Calcium Ion Electrode Tips 1000 mg/L Calcium Ion Standard Solution (50ml) 100 mg/L Calcium Ion Standard Solution (50ml) Calcium Ionic Strength Adjustor (50ml) Calcium Electrode Filling Solution (50ml) Syringe Dropper Protective Pipe Manual
