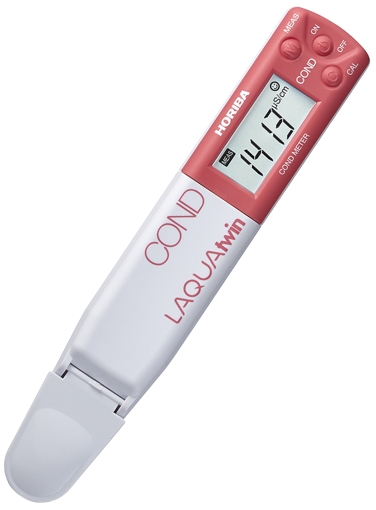

The Horiba LAQUAtwin EC-22 Compact Conductivity Meter, # 3999960126 is the only pocket meter that directly measures conductivity and total dissolved solids (TDS) in 0.12ml sample. No need for a beaker to calibrate your meter or measure a sample. Just place few drops of the standard or sample onto the Horiba LAQUAtwin EC-22 sensor. This procedure saves you time and prevents wasting your precious sample. Up to 3 calibration points.
±2% full scale (0 to 19.99 mS/cm) | ±5% full scale (20.0 to 199.9 mS/cm)
Temperature Display
0 to 50.0 °C
Temperature Calibration
5 to 40.0 ºC
Display
Custom (monochrome) LCD with backlight
Operating Temperature
5 to 40°C
Operating Humidity
85% or less relative humidity (no condensation)
Power
CR2032 batteries (2)
Battery Life
Approx. 400 hours in continuous use (without backlight)
Dimensions
164 × 29 × 20mm (excluding projections)
Mass
Approx. 50 g (including sensor and batteries)
Functions
Auto Range | Auto Calibration | Auto Standard Recognition | Auto Temperature Compensation (2%/°C fixed) | Temperature Calibration (only for EC-22 & EC-33) | Auto Stable / Auto Hold Measurement | Auto Power Off (30mins) | Switchable Backlight | Low Battery Indicator | IP67 Dust / Waterproof | Replaceable Sensor
±2% full scale (0 to 19.99 mS/cm) | ±5% full scale (20.0 to 199.9 mS/cm)
Temperature Display
0 to 50.0 °C
Temperature Calibration
5 to 40.0 ºC
Display
Custom (monochrome) LCD with backlight
Operating Temperature
5 to 40°C
Operating Humidity
85% or less relative humidity (no condensation)
Power
CR2032 batteries (2)
Battery Life
Approx. 400 hours in continuous use (without backlight)
Dimensions
164 × 29 × 20mm (excluding projections)
Mass
Approx. 50 g (including sensor and batteries)
Functions
Auto Range | Auto Calibration | Auto Standard Recognition | Auto Temperature Compensation (2%/°C fixed) | Temperature Calibration (only for EC-22 & EC-33) | Auto Stable / Auto Hold Measurement | Auto Power Off (30mins) | Switchable Backlight | Low Battery Indicator | IP67 Dust / Waterproof | Replaceable Sensor
Product Features
Minimum sample volume: 0.12ml
Up to 3 calibration points
Conductivity, TDS, and temperature display
Auto range
Auto calibration
Auto standard recognition: 1413S/cm, 12.88mS/cm, 111.8mS/cm
Auto temperature compensation: 2%/C fixed
Temperature calibration: 5 to 40.0 C
4 Total dissolved solids curves: TDS Factor 0.4 to 1.0, EN 27888, 442, NaCl
Auto stable / auto hold measurement
Auto power off: 30 mins
Low battery indicator
IP67 Rating dust & waterproof
Replaceable sensor
400 Hours battery life: continuous use without backlight
Materials: ABS epoxy body & titanium coated with platinum black sensor
Display: custom (monochrome) LCD with backlight
Operating conditions: 5 to 40C, 85% or less relative humidity
Warranty: 2 years - meter, 6 months - sensor
Packed in handy carrying case
Supplied with 1413S/cm & 12.88mS/cm conductivity standards (14ml each), conditioning solution (4ml), 2 x CR2032 batteries, dropper, instruction and quick manuals
