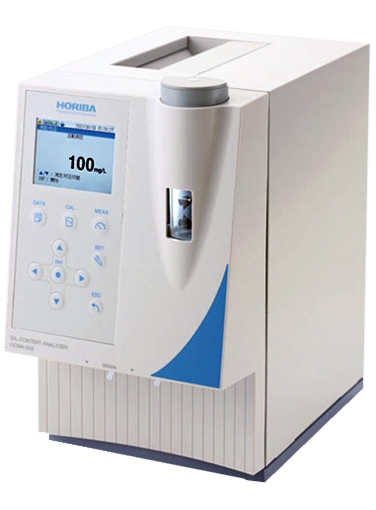

Horiba OCMA-500 # 3200555915 Oil Content Monitor / Analyzer, Old # 30005232
The Horiba OCMA-500 # 3200555915 Oil Content Monitor / Analyzer, Old # 30005232 is a precision instrument that has been redesigned for even better operability, maintaining its user-friendly features. After injecting the sample, all you have to do is press a button to get the monitoring operation done quickly, from oil extraction to sample measurement and draining. This machine is easy for anyone to use. The Horiba OCMA-500 # 3200555915 Oil Content Monitor, Old # 30005232 cuts solvent consumption by 20% compared with our previous products, reducing environmental impact. It also reduces the running costs.
Fully automated one-touch operation, from oil extraction to sample measurement and draining Reduced environmental impact and running costs (20% cut in solvent consumption) With no need for a solvent evaporation process, the OCMA-500 offers easy operation, and can detect even oils with low boiling points.
Measurement principle
Solvent extraction, NDIR analysis (Infrared spectroscopy)
Measurement range
0mg/l ~ 200mg/l dynamic ranging
Resolution
0 to 99.9 mg/L; 0.1 mg/L 100 to 200 mg/L; 1 mg/L
Repeatability
0 to 9.9 mg/L; ± 0.2 mg/L ± 1 digit 10.0 to 99.9 mg/L; ± 2 mg/L ± 1 digit 100 to 200 mg/L; ± 4 mg/L ± 1 digit *For standard liquids
Display Method
3.5 inches, 320×240 dots Backlight Colour graphic LCD
Calibration Method
Zero, Span Calibration
Extraction Solvent
S-316 solvent
Amount of test sample required
Sample water
Amount of extraction solvent required
8 mL
Extraction Method
Built-in extractor
Ambient Operationg Temperature
0 to 40 ºC (non condensation)
Power supply
AC 100V to 240V ±10%, 50/60 Hz
Power consumption
AC 100V
External Dimensions
200(W)×313(D)×342(H) mm
Mass
Approx. 7 kg
External Output
Output to an USB memory stick
Functions
300-item data memory Stabilized measurement value display Self error determination Clock
More Information
Product Specifications
Measurement principle
Solvent extraction, NDIR analysis (Infrared spectroscopy)
Measurement range
0mg/l ~ 200mg/l dynamic ranging
Resolution
0 to 99.9 mg/L; 0.1 mg/L 100 to 200 mg/L; 1 mg/L
Repeatability
0 to 9.9 mg/L; ± 0.2 mg/L ± 1 digit 10.0 to 99.9 mg/L; ± 2 mg/L ± 1 digit 100 to 200 mg/L; ± 4 mg/L ± 1 digit *For standard liquids
Display Method
3.5 inches, 320×240 dots Backlight Colour graphic LCD
Calibration Method
Zero, Span Calibration
Extraction Solvent
S-316 solvent
Amount of test sample required
Sample water
Amount of extraction solvent required
8 mL
Extraction Method
Built-in extractor
Ambient Operationg Temperature
0 to 40 ºC (non condensation)
Power supply
AC 100V to 240V ±10%, 50/60 Hz
Power consumption
AC 100V
External Dimensions
200(W)×313(D)×342(H) mm
Mass
Approx. 7 kg
External Output
Output to an USB memory stick
Functions
300-item data memory Stabilized measurement value display Self error determination Clock
Product Features
Fully automated one-touch operation, from oil extraction to sample measurement and draining Reduced environmental impact and running costs (20% cut in solvent consumption) With no need for a solvent evaporation process, the OCMA-500 offers easy operation, and can detect even oils with low boiling points.
