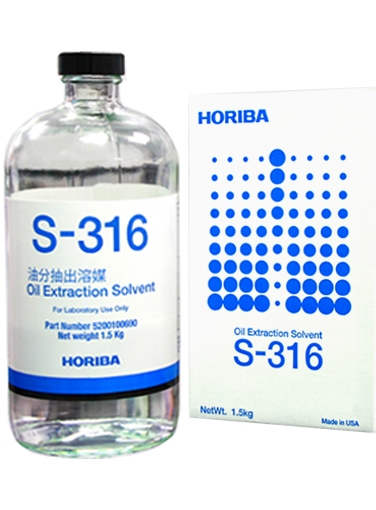

Horiba S-316 # 100690 Extraction Solvent Oil 1.5 Kg Bottle # 5200100690
The Horiba S-316 # 100690 Extraction Solvent Oil 1.5 Kg Bottle # 5200100690 is used with HORIBA Oil in Water analyzers OCMA (models, OCMA-310, OCMA-550, and OCMA-500). The solvent S-316 is used to extract the oil and grease (Total Hydrocarbons) from a water based sample as well as to extract hydrocarbons from metal parts (for contamination check).
Prepare the calibration solution to calibrate the infrared Spectrometer OCMA: pure solvent (zero Calibration), solvent + oil (span calibration) Extract the oil and grease from the sample Perform the measurement by Infrared Abortion (NDIR) Clean the measurement cel One bottle of S-316 allows performing up to 40 measurements* on a previously calibrated OCMA-550 analyzer * Base on 20 ml per measurement (15 ml for extraction and 5ml for cell cleaning)
Color
Colorless
Volume
approx. 847 ml
Density
1.77 at 20ºC
Viscosity at 100 °F
0.72 - 1.1 cs
Boiling Point
134°C (273.2°F)
IR Absorption
at 2930 cm-1 or 3.4 µm
Certificate of Analysis
on request (please specify the lot number)
Weight
1.5 kg
More Information
Product Specifications
Color
Colorless
Volume
approx. 847 ml
Density
1.77 at 20ºC
Viscosity at 100 °F
0.72 - 1.1 cs
Boiling Point
134°C (273.2°F)
IR Absorption
at 2930 cm-1 or 3.4 µm
Certificate of Analysis
on request (please specify the lot number)
Weight
1.5 kg
Product Features
Prepare the calibration solution to calibrate the infrared Spectrometer OCMA: pure solvent (zero Calibration), solvent + oil (span calibration) Extract the oil and grease from the sample Perform the measurement by Infrared Abortion (NDIR) Clean the measurement cel One bottle of S-316 allows performing up to 40 measurements* on a previously calibrated OCMA-550 analyzer * Base on 20 ml per measurement (15 ml for extraction and 5ml for cell cleaning)
